An indispensable device for CNC machines – Micro DNC 2D

The Micro DNC 2D transfer unit – an indispensable accessory for CNC machines

The Micro DNC data transfer unit is already familiar to CNC machining shops thanks to the compactness and convenience it brings to machine operators. In late 2023, QS Technology launched the Micro DNC 2D transfer unit with numerous hardware and design upgrades.

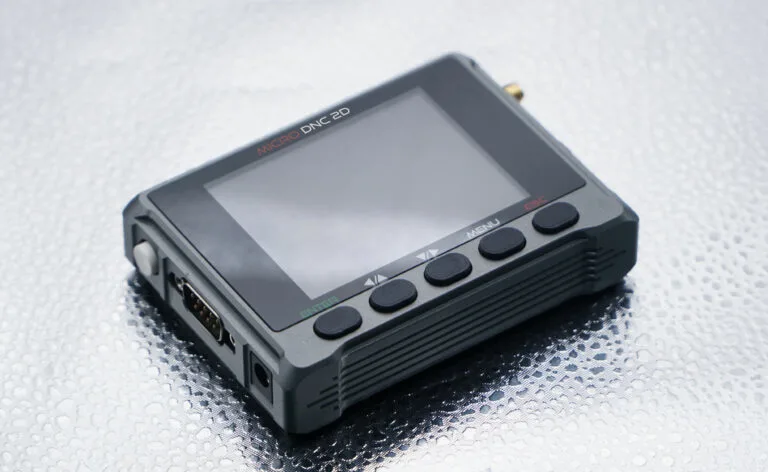

The Micro DNC 2D data transfer unit

What is a DNC device?

A DNC device lets the machine operator quickly transfer machining programs (G-code programs) into a CNC machine through the RS232 communication port.

With a compact footprint and time-saving features — transferring data and programs over long distances via Wi-Fi, checking a program's profile with the toolpath simulation function, and editing machining programs directly on the device — the Micro DNC 2D is widely used in part machining (milling/turning), mold making, CNC wire cutting, CNC punching, CNC stamping, and more.

In addition, the operator can monitor and track the device's operation over Wi-Fi with the "QS Explorer" software.

Stable data transfer and long-term durability are among the reasons customers trust the device and use it so widely.

An overview of how the DNC device works

Why choose the Micro DNC?

– Replaces inefficient data transfer via a computer.

– Saves workspace.

– Cuts down time moving between machines.

– Can serve as external memory for machines/controllers with limited memory.

– Manage and monitor machining progress on all devices from a single computer.

Standout features

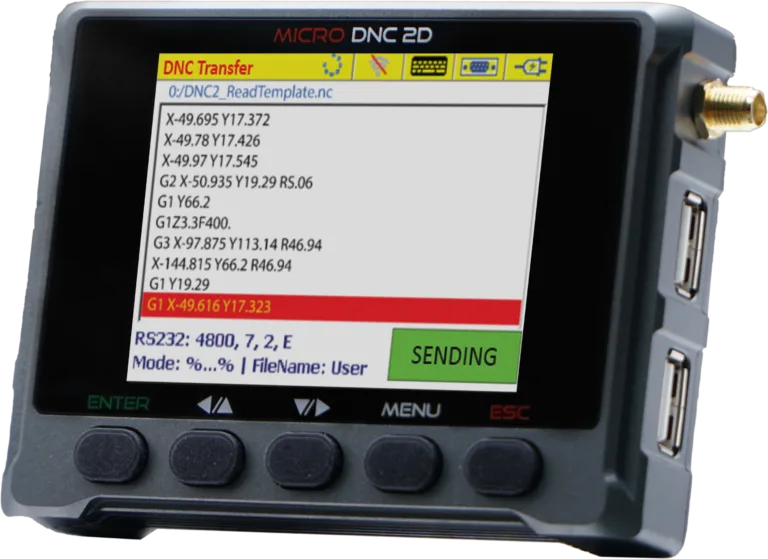

1. DNC transfer

Lets the operator transfer machining programs into the CNC machine through the RS232 port, in 3 steps:

– Set the transfer speed (baud rate).

– Select the program to machine.

– Run the job.

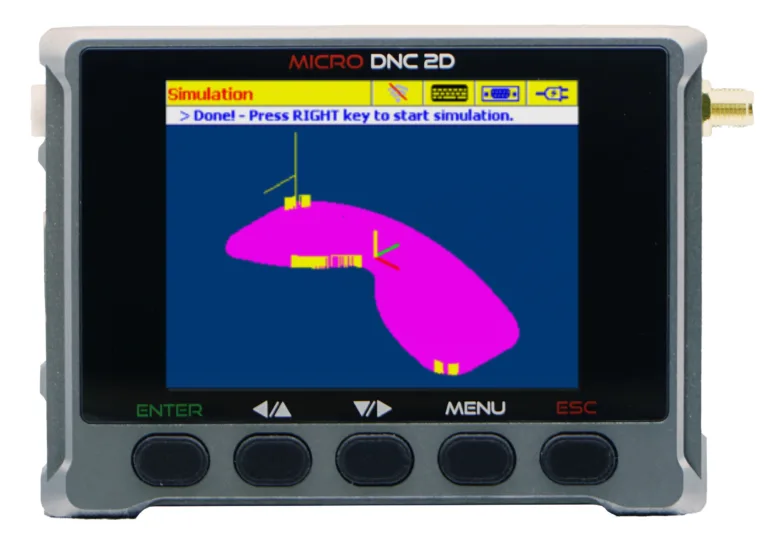

2. Toolpath simulation

The Micro DNC lets the operator verify the profile and coordinates of a machining program with the toolpath simulation feature, ensuring accuracy.

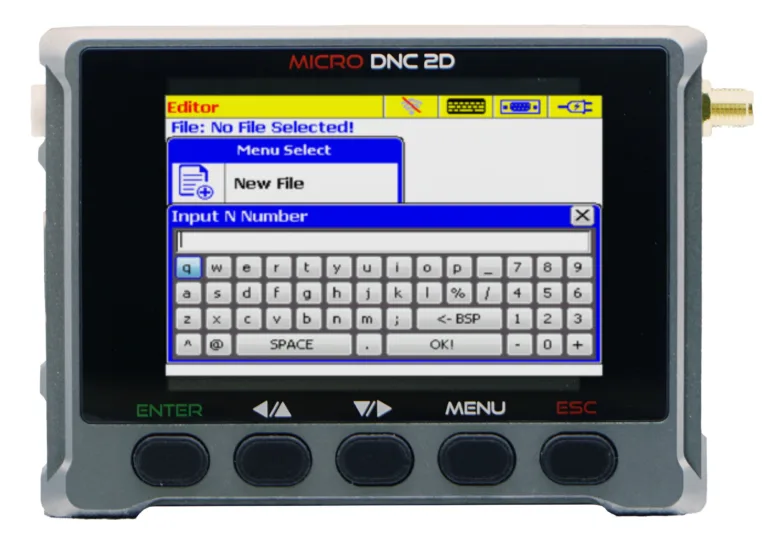

3. Program editing

This feature lets the operator edit G-code programs directly on the DNC device without needing a computer.

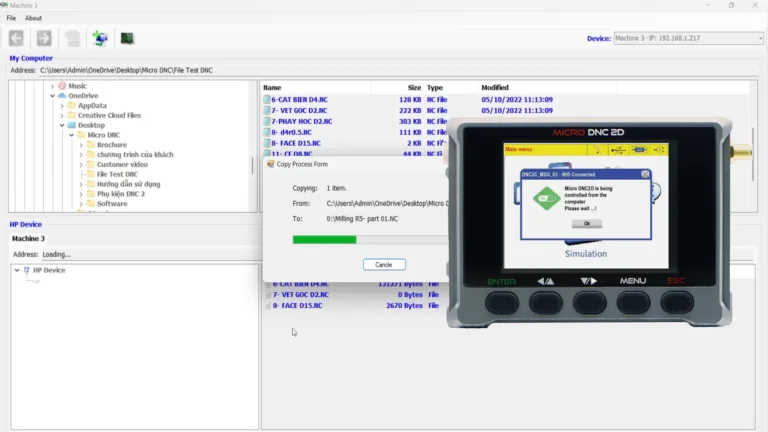

4. Online data management

Shortens the time spent loading programs onto CNC machines. Monitor and track job progress at a glance.

Specifications

– Dimensions: 110 x 75 x 30 mm

– LCD type: 3.2-inch TFT

– USB ports: 2

– Input voltage: 12VDC – 1A

– Memory: 4GB

– Housing: Aluminum

The Micro DNC 2D is also compatible with most machine systems, including FANUC, YASNAC, MAZAK, HAAS, OKUMA, MAKINO, MORI SEIKI, ENSHU,…
