Astro 10S Controller

Name: Astro 10S
Brand: QS Technology
SKU: astro-10s

16-axis open-loop controller supporting Pulse Train and EtherCAT. A multi-axis control solution for complex production lines, shipped with servo drive/motor, power supply and I/O Link 1616 board.

Get a quote →All downloads →

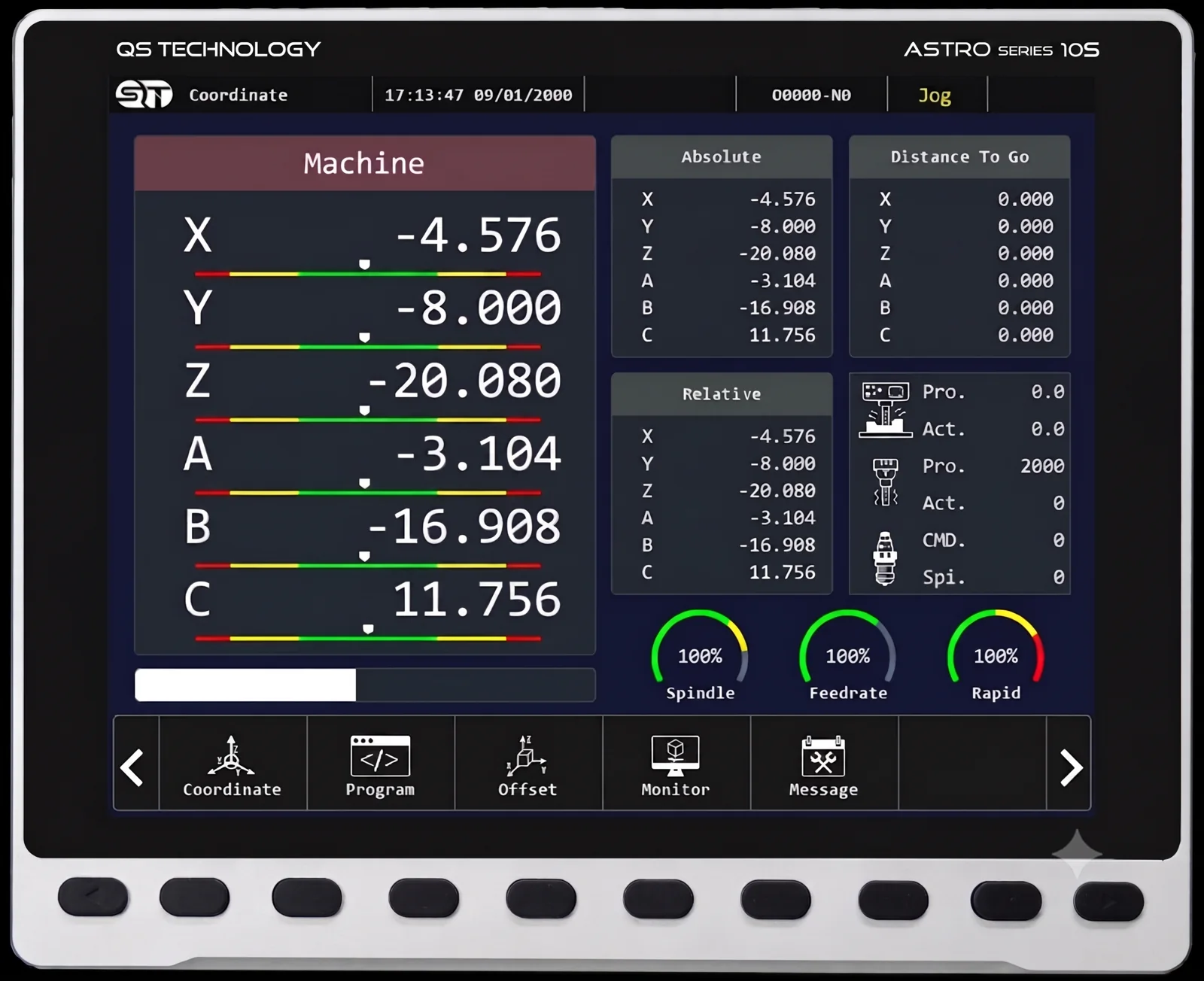

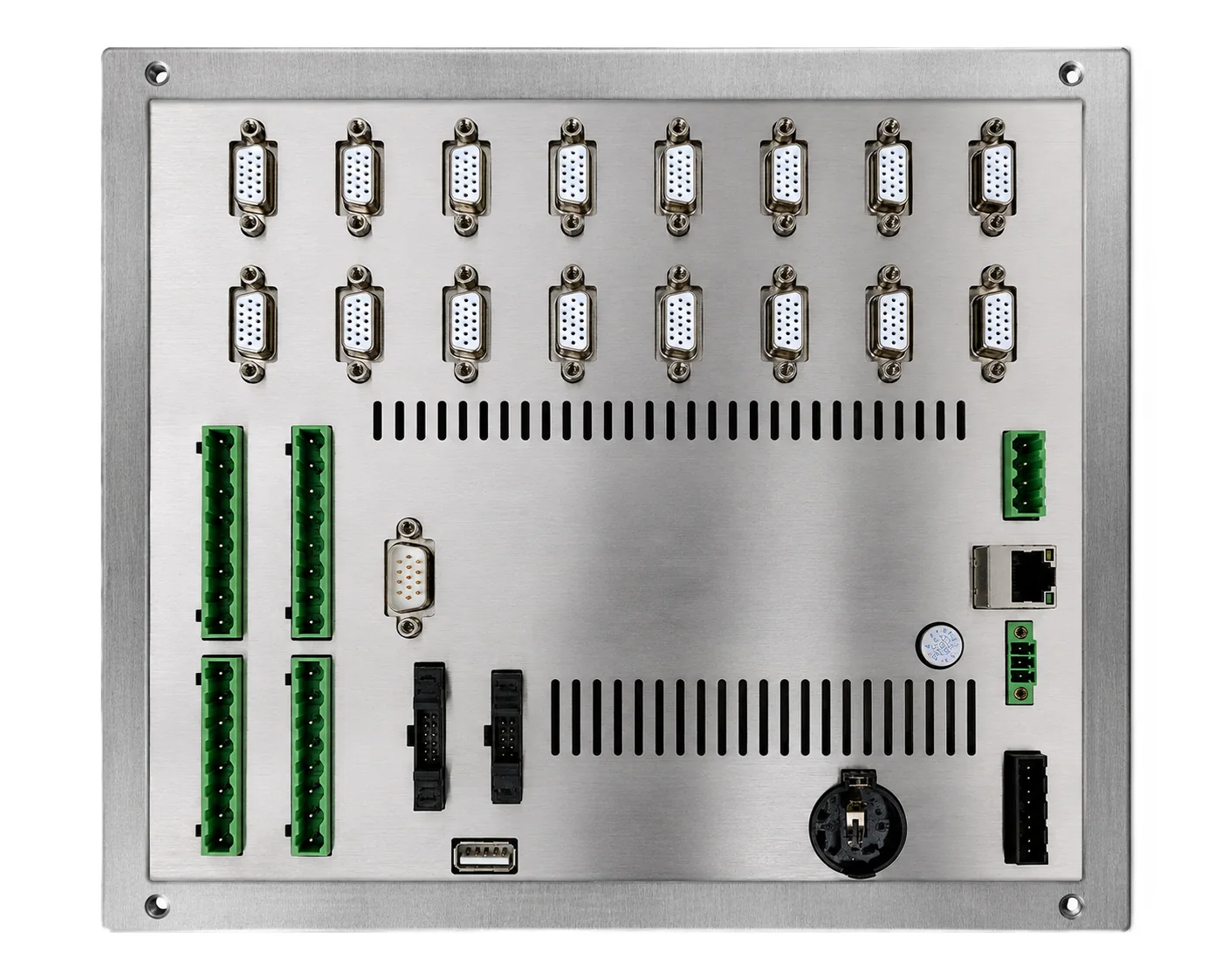

Astro 10S — Rear — QS · Astro 10S — Front

Axes: 16 axes
Interface: Pulse Train · EtherCAT
Display: 10.4"
I/O: 24/16 · 16/16

Full package · 6 componentsSee what's included

Astro 10S Controller

Servo Drive

Servo Motor

24V Power Supply

4-axis MPG Handwheel

[ Overview ]

Product overview

16-axis open-loop controller supporting Pulse Train and EtherCAT. A multi-axis control solution for complex production lines, shipped with servo drive/motor, power supply and I/O Link 1616 board.

[ A closer look ]

The product in detail — real photos

06 / 06

Actual photosReal photographs of the controller.02

Real photographs of the controller.

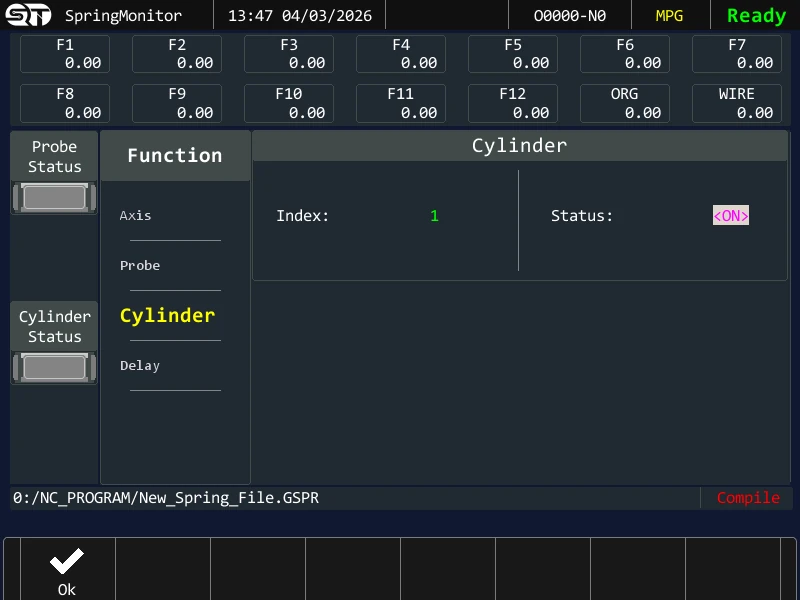

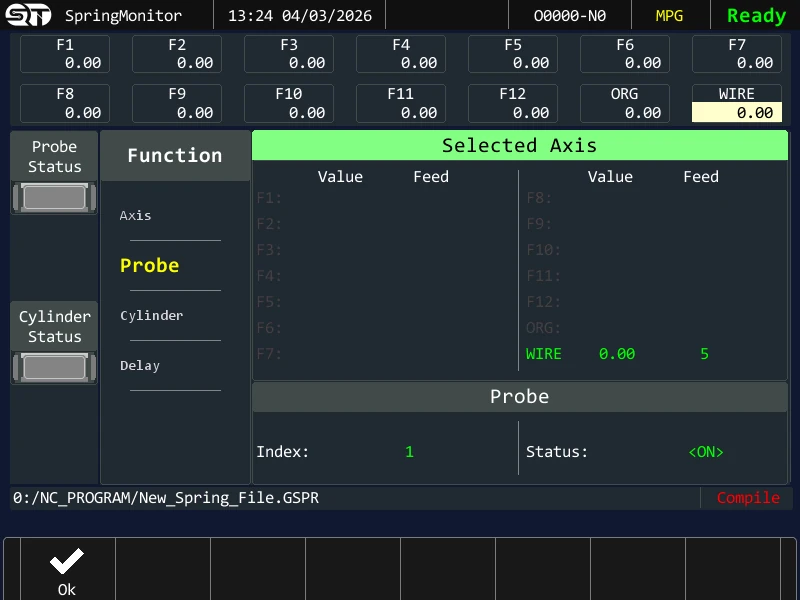

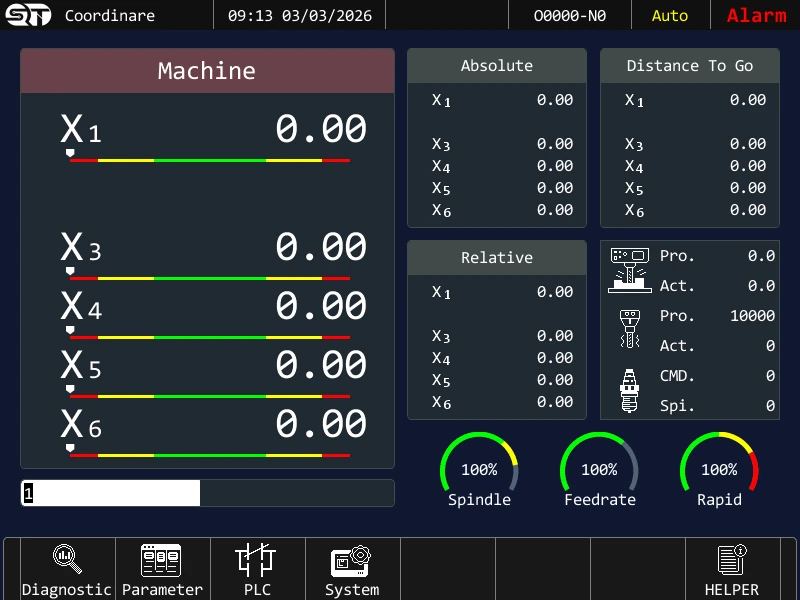

Operating interfaceKey operating screens and functions.03

Key operating screens and functions.

Operating interface — Astro 10S 16-axis Controller

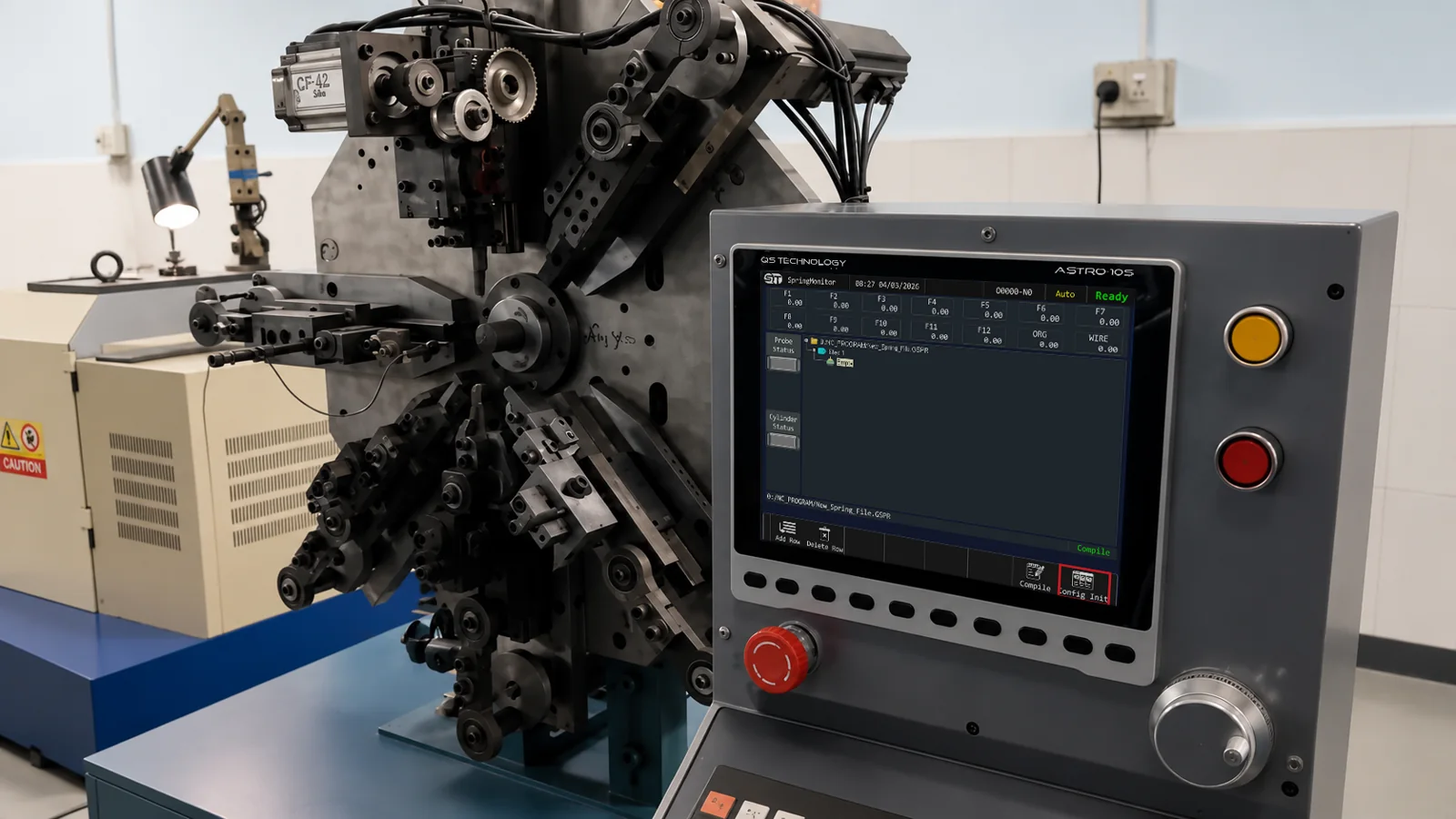

Installed on a machineController installed and running on a real CNC machine.01

Controller installed and running on a real CNC machine.

Astro 10S 16-axis Controller in the field on a CNC machine

[ Video ]

Product video

[ Technical specifications ]

Full spec table

Values shared across every protocol are merged. Where a protocol differs, its own value sits in that column.

Astro 10S

Pulse Train

Open loop

EtherCAT

Open loop

General

Dimensions

254 × 210 × 40 mm

Housing material

Aluminum

Control axes

6 axes

14 axes

PLC-controlled axes

14 axes

Simultaneous spindle axes

4 axes

Tool table capacity

Look-Ahead

500 lines

Block processing time

500 µs

Min. control unit

0.0001

Hardware

Integrated I/O ports

24/16

16/16

Max. expanded I/O ports

256/256

Display

10.4 inches (Touch screen)

RS485

USB port

Software

Encoder feedback

Index Z

All axes

Torque feedback

Supported

Servo parameter management

Supported

PLC

Integrated PLC Ladder

Backlash compensation

Supported

MPG Simulation

Supported

MPG Offset

Supported

Restart at feedhold

Supported

Automatic tool change (ATC)

Supported

Pulse TrainOpen loop

General

Dimensions254 × 210 × 40 mm

Housing materialAluminum

Control axes6 axes

PLC-controlled axes

Simultaneous spindle axes4 axes

Tool table capacity40

Look-Ahead500 lines

Block processing time500 µs

Min. control unit0.0001

Hardware

Integrated I/O ports24/16

Max. expanded I/O ports256/256

Display10.4 inches (Touch screen)

RS4851

USB port1

DA1

Software

Encoder feedbackIndex Z

Torque feedback

Servo parameter management

PLCIntegrated PLC Ladder

Backlash compensationSupported

MPG SimulationSupported

MPG OffsetSupported

Restart at feedholdSupported

Automatic tool change (ATC)Supported

EtherCATOpen loop

General

Dimensions254 × 210 × 40 mm

Housing materialAluminum

Control axes14 axes

PLC-controlled axes14 axes

Simultaneous spindle axes4 axes

Tool table capacity40

Look-Ahead500 lines

Block processing time500 µs

Min. control unit0.0001

Hardware

Integrated I/O ports16/16

Max. expanded I/O ports256/256

Display10.4 inches (Touch screen)

RS4851

USB port1

DA1

Software

Encoder feedbackAll axes

Torque feedbackSupported

Servo parameter managementSupported

PLCIntegrated PLC Ladder

Backlash compensationSupported

MPG SimulationSupported

MPG OffsetSupported

Restart at feedholdSupported

Automatic tool change (ATC)Supported
