QS Technology launches the F54 4-axis CNC controller
A proud Vietnamese brand.

QS Technology officially introduced and launched its 4-axis CNC controller, the F54, in November 2023. The product arrived at a time when businesses had grown accustomed to CNC controllers from other countries such as China, Japan, and Germany. It was created to mark a step forward for the CNC field in Vietnam.

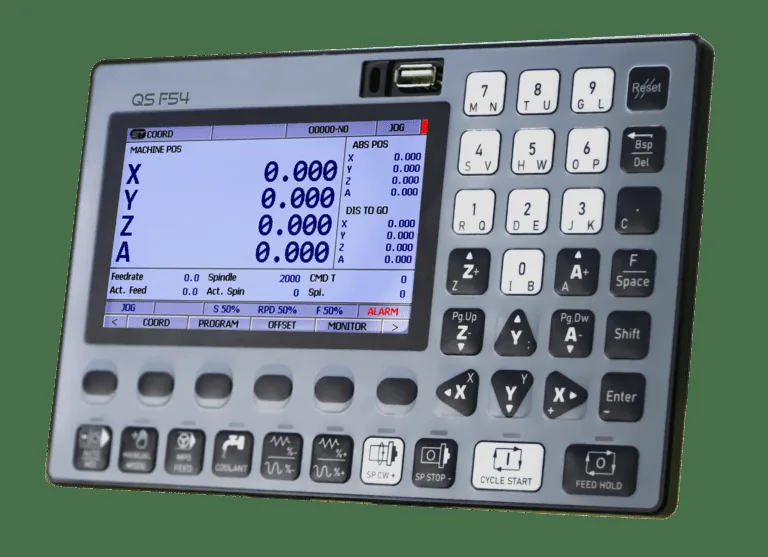

The F54 4-axis CNC controller

1. Standout features

– Backlash compensation.

– Integrated PLC Ladder.

– Toolpath simulation.

– Quick workpiece centering.

– Phase-Z encoder feedback.

– Look-ahead: 250 lines.

– Data backup recovery.

– Manage, send, and receive data over Wi-Fi.

2. Specifications

– Dimensions: 220 x 140 x 30 (mm).

– Monitor: 5 inches.

– Control axes: 4.

– Controllable spindles: 1.

– Input ports: 16.

– Output ports: 6.

– Max. expanded I/O ports: 256/256.

– Supported servo/driver type: Pulse and Direction.

3. More photos

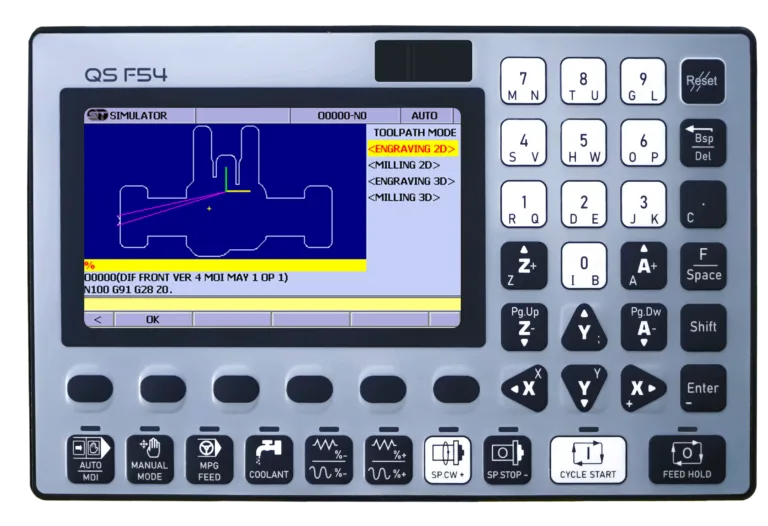

The toolpath simulation interface

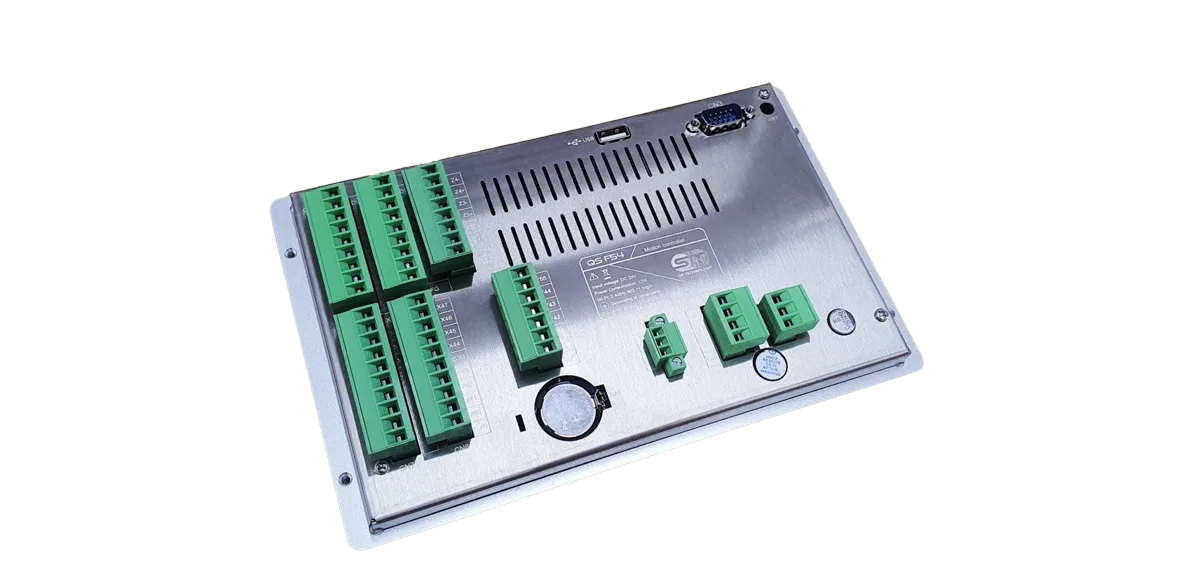

Rear of the F54 controller

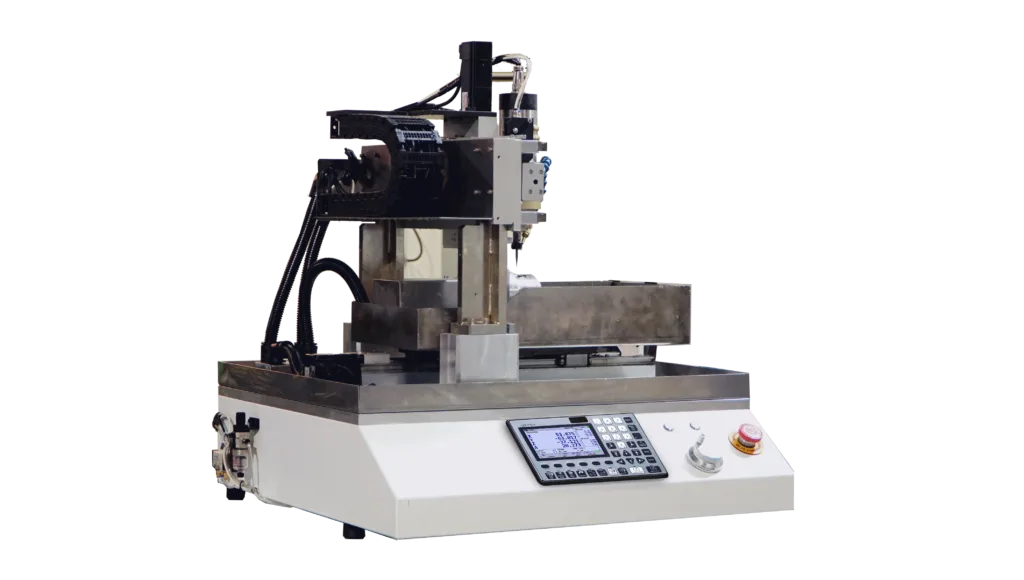

The F54 controller in use on a 4-axis engraving machine

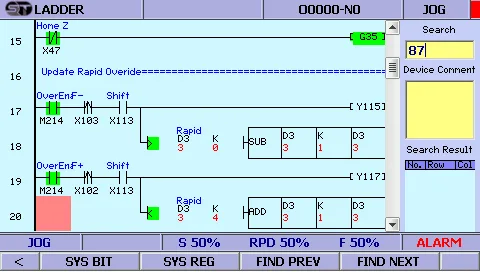

The PLC Ladder interface

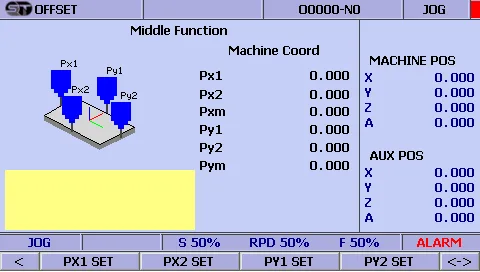

The quick workpiece-centering interface
