QS Technology launches the F86 6-axis CNC controller.

QS Technology Launches the F86 CNC Controller: A New Step Forward for the CNC Industry in Vietnam.

Following the enthusiastic support and interest customers showed for the earlier F54 4-axis CNC controller, on September 20, 2022 QS Technology Co., Ltd officially launched the F86 6-axis CNC controller, marking a new step forward for the CNC industry in Vietnam.

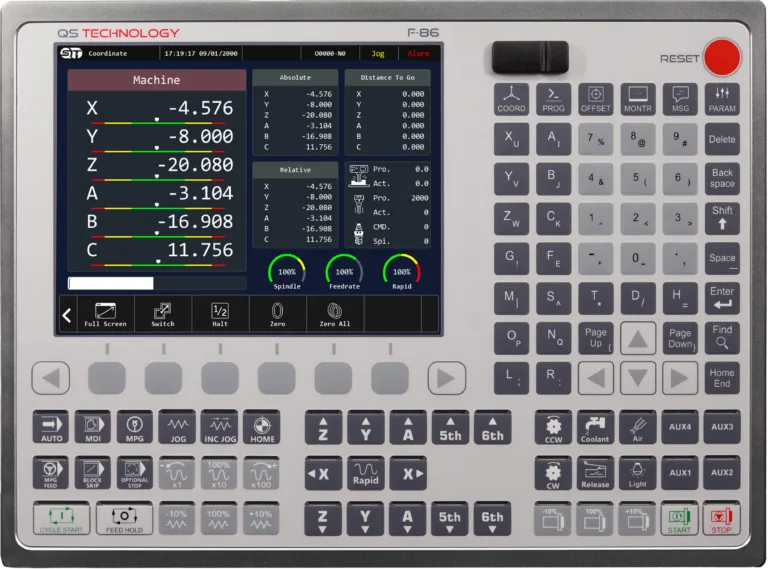

The F86 6-axis CNC controller

The first upgrade in this new product is an expanded function panel, making operation easier. This version also upgrades the display to an 8-inch LCD with 800×600 px resolution.

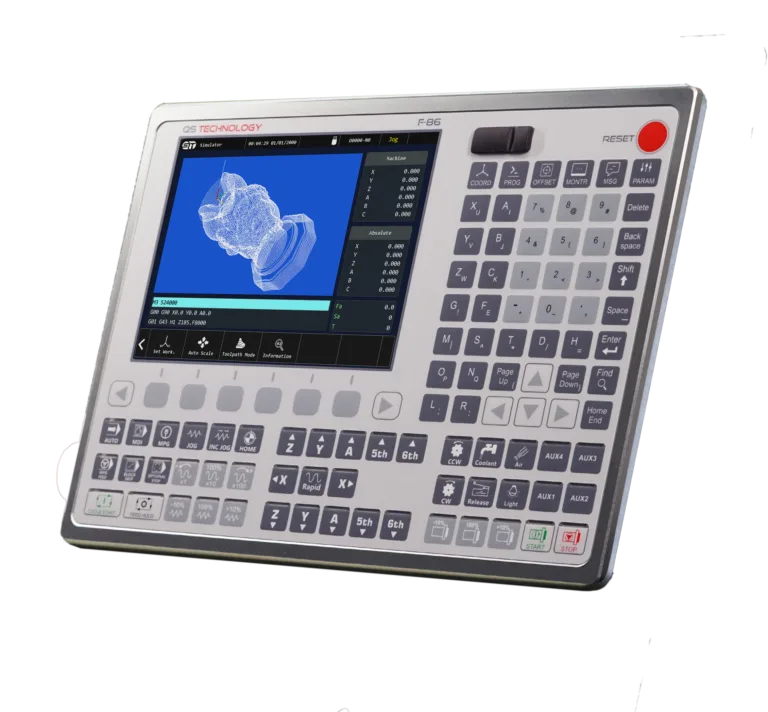

Beyond the external hardware upgrades, the F86's operating interface is another plus — redesigned in a modern style that presents machine information intuitively.

1. Standout features

– Backlash compensation

– Integrated PLC Ladder processing module

– Macro programming

– Toolpath simulation

– Axis encoder feedback: Phase Z

– Quick workpiece centering

– Look-ahead: 250 lines

– Data backup recovery

2. Specifications

– Dimensions: 320 x 185 x 30 (mm)

– Housing: Anodized aluminum

– Control axes: 6 simultaneous

– Spindle control: Analog signal

– Input ports: 24

– Output ports: 16

– Max. expanded I/O ports: 256/256

– Supported servo/driver type: Pulse & Direction

3. More photos

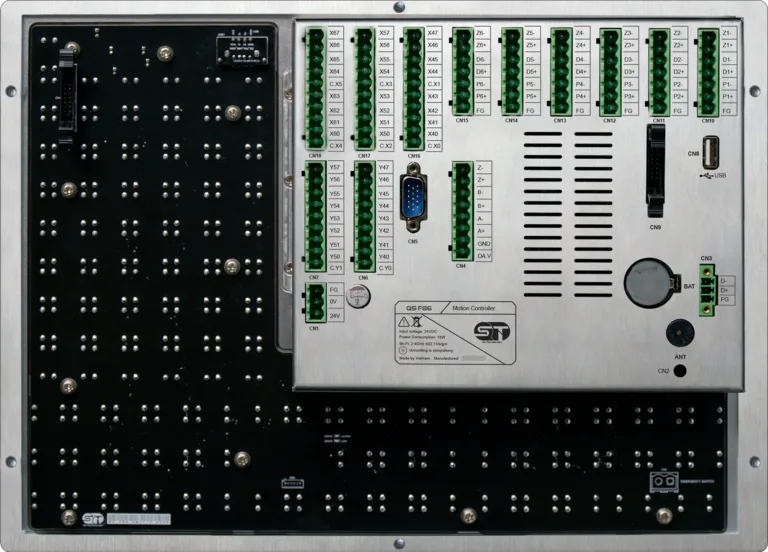

Rear of the F86 controller

The F86 controller's retail box
