Router

QSM-R4020

5-Axis CNC Router

A 5-axis CNC router that machines complex 3D parts in a single setup through flexible cutting-angle control.

Control axes: 5
Spindle speed: 18,000 rpm
Spindle power: 7.5 kW
X/Y/Z travel: 4,000 × 1,800 × 600 mm

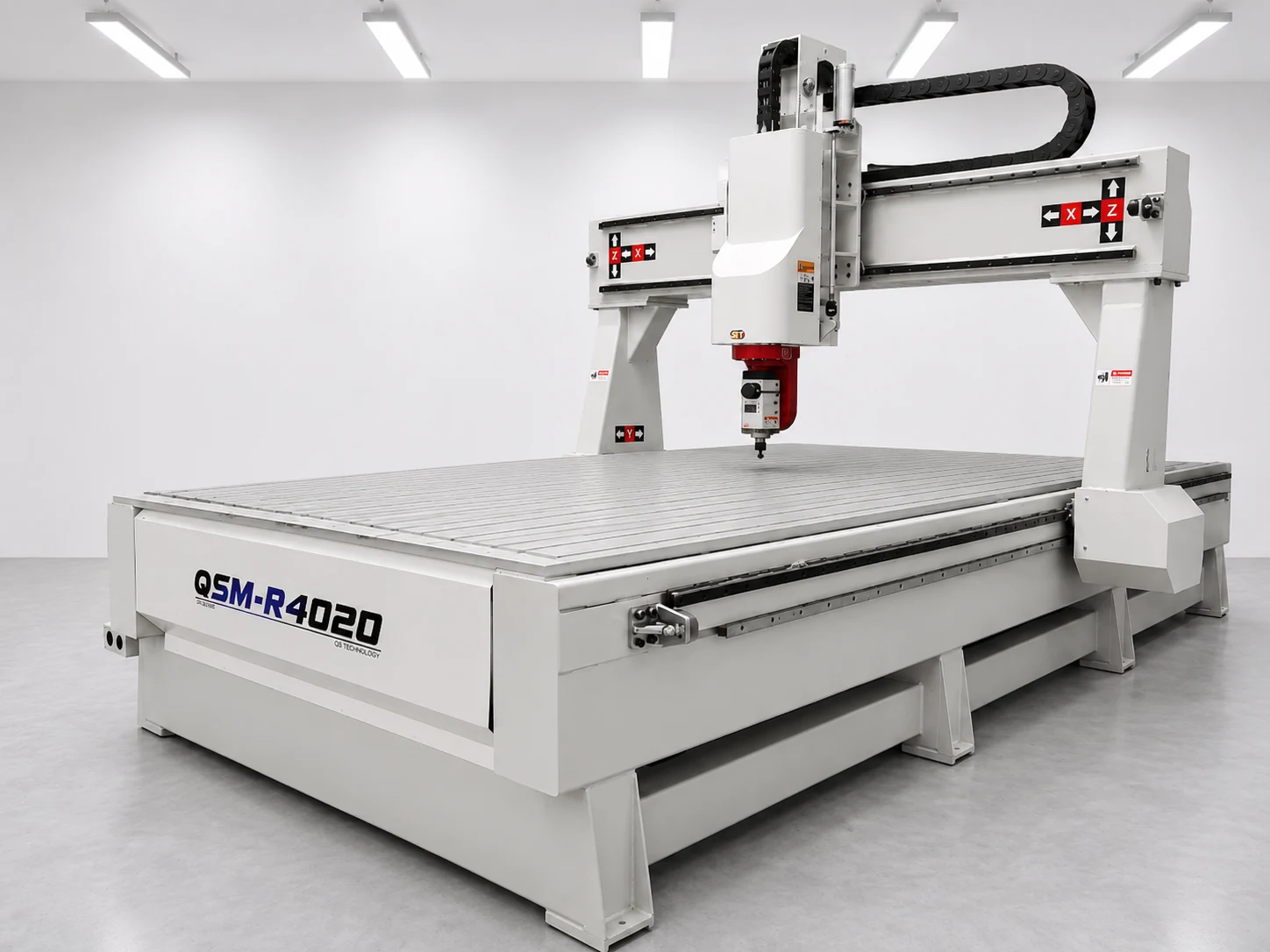

QSM-R4020 — Front5 axes

Suitable applications

Large-format workpieces

A 4,200 × 2,000 mm table for panels and oversized workpieces.

Complex 3D parts

Five axes vary the cutting angle to finish parts in one setup.

Mould making

Machining moulds and 3D masters with complex curved profiles.

Furniture and décor

Carving and profile cutting for furniture, signage and décor.

Highlights

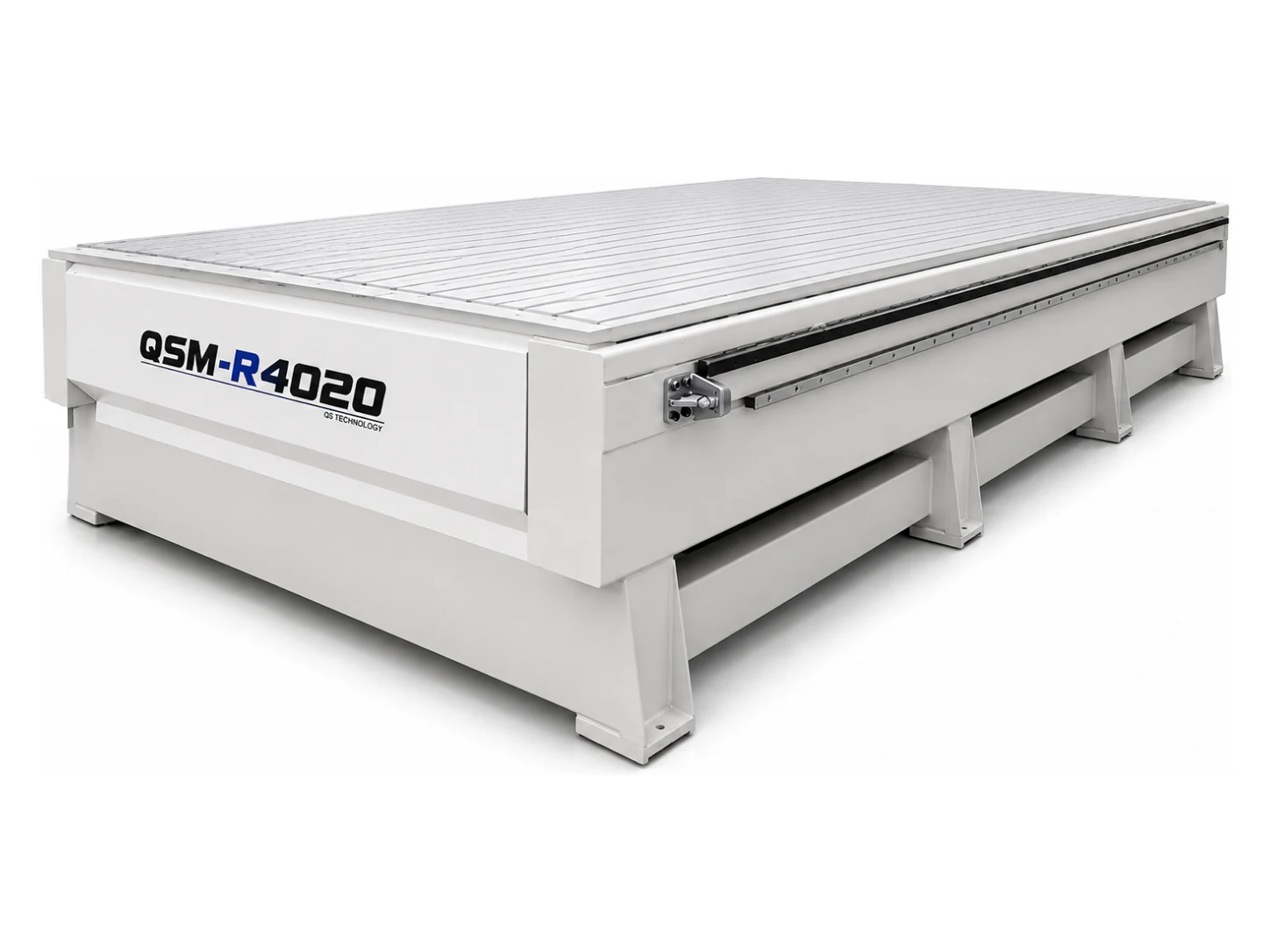

Work table

A 4,200 × 2,000 mm table rated for 500 kg, with a 7.5 kW vacuum pump.

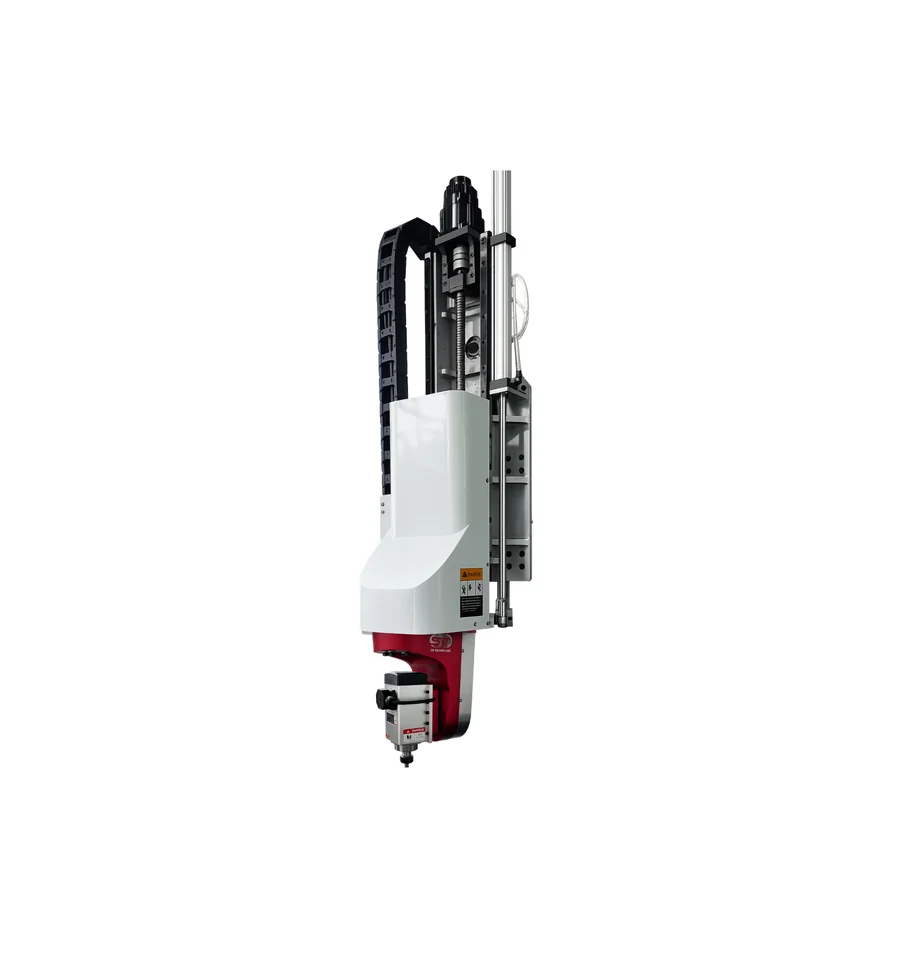

Spindle

18,000 rpm, 7.5 kW spindle with an ISO20 taper.

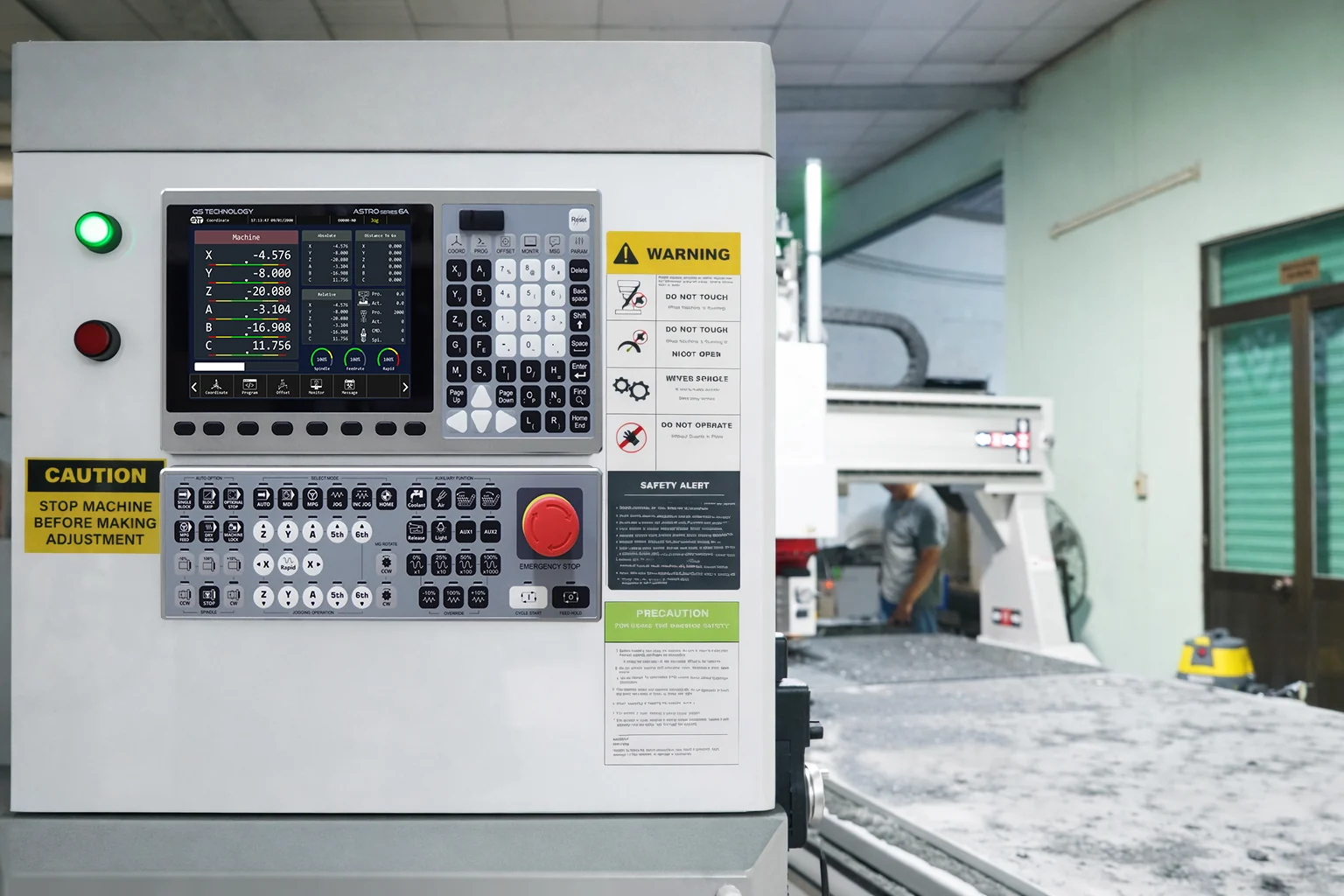

Controller

QS Astro 6AHE with EtherCAT driving five simultaneous axes.

Machine in operation

Machining capabilities

Aluminium

Brass

Wood

Plastic

Working space

X/Y/Z travel: 4,000 × 1,800 × 600 mm
Table size: 4,200 × 2,000 mm
Table load: 500 kg
Spindle nose to table: Updating

Machining performance

18,000

rpm

Spindle speed

7.5

Spindle power

40,000

mm/min (X/Y)

Rapid speed

15,000

mm/min

Cutting feed

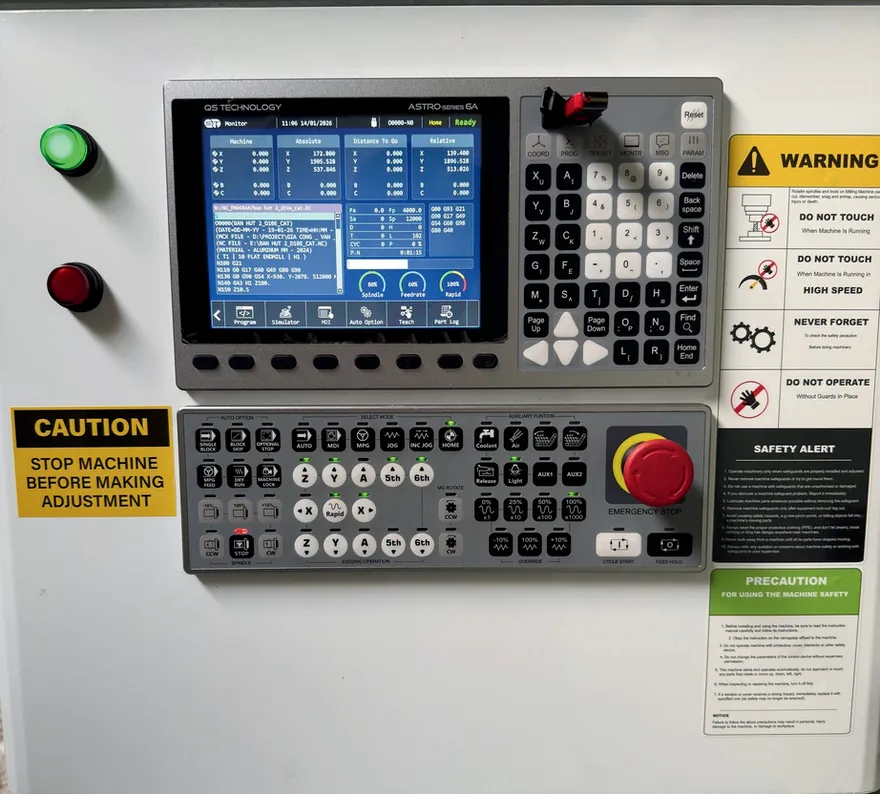

CNC controller

QS Astro 6AHE (EtherCAT)

6-axis closed-loop controller supporting Pulse Train, EtherCAT and Mechatrolink MII/MIII. A full automation solution with servo, I/O Link 32 board, tool setter and 3D touch probe.

Control axes: 6 axesControl mode: Closed-loopInterface: Pulse Train · EtherCAT · Mechatrolink MII/MIII

See the controller →

Technical specifications

Machining materials

Machining materials: Aluminium, brass, wood, plastic
Control axes: 5
X/Y/Z travel: 4,000 × 1,800 × 600 mm
Table size: 4,200 × 2,000 mm
Table load: 500 kg

General specifications

Spindle speed: 18,000 rpm
Spindle power: 7.5 kW
Spindle taper: ISO20

Spindle

Rapid speed: 40,000 mm/min (X/Y)
Z-axis rapid speed: 20,000 mm/min
Cutting feed: 15,000 mm/min
Rotary axis: 180°
Axis servos: QS Servo
Guideway and ball-screw lubrication: Lubricating oil

Speed

Positioning accuracy: ±0.01 / 100 mm
Repeatability: 0.01 / 100 mm
Electronic resolution: 0.001 mm

Accuracy

Frame material: Steel
Machine dimensions: 4,200 × 1,800 × 600 mm
Machine weight: 2,600 kg
Machine power: 8.7 kW
Vacuum pump: 7.5 kW
Power supply: AC 1-phase 220 V
Air pressure: 0.6 – 0.8 MPa
Chip recovery system: Included
Coolant system: Included

Machine body

Controller: QS Astro 6AHE (EtherCAT)

Standard configuration — spindle, tool magazine and travel can be tailored on request.

Standard & optional configuration

Standard equipment

QS axis servos
7.5 kW vacuum pump
Guideway and ball-screw lubrication system
Chip recovery system
Coolant system

Options

Updating

Downloads

Technical datasheet

QSM-R4020

Full technical specifications for this machine — contact us for the complete sheet.

Updating

Product catalogue

PDF · EN

An overview of the QS machine range and controller line-up.

Download →

Controller documentation

Astro 6AH

Operation and installation manuals for the controller shipped with this machine.

Download →

Need the machine configured for your parts?

Send us a drawing or a sample workpiece — QS engineers propose the spindle, workholding and machining cycle within 48 hours.

Request a quote → Talk to an engineer
