Automation

CWM-050

Weighs large products and cartons, detecting underweight and overweight items — widely used across food, pharmaceutical, chemical, agricultural and industrial lines.

Ready to run

Max. capacity: 50 kg
Conveyor speed: 40 m/min
Tolerance: ±25 g

Where it sits in the line

CWM-050 drops straight into your existing line — from infeed to discharge.

Infeed

Product in

Products or cartons enter the weighing belt from the upstream line.

Weigh in motion

A load cell weighs each item on the move and compares it to the preset range.

Accept / reject

Underweight or overweight items are flagged and diverted off the line.

Discharge

Machine in operation

On the floor

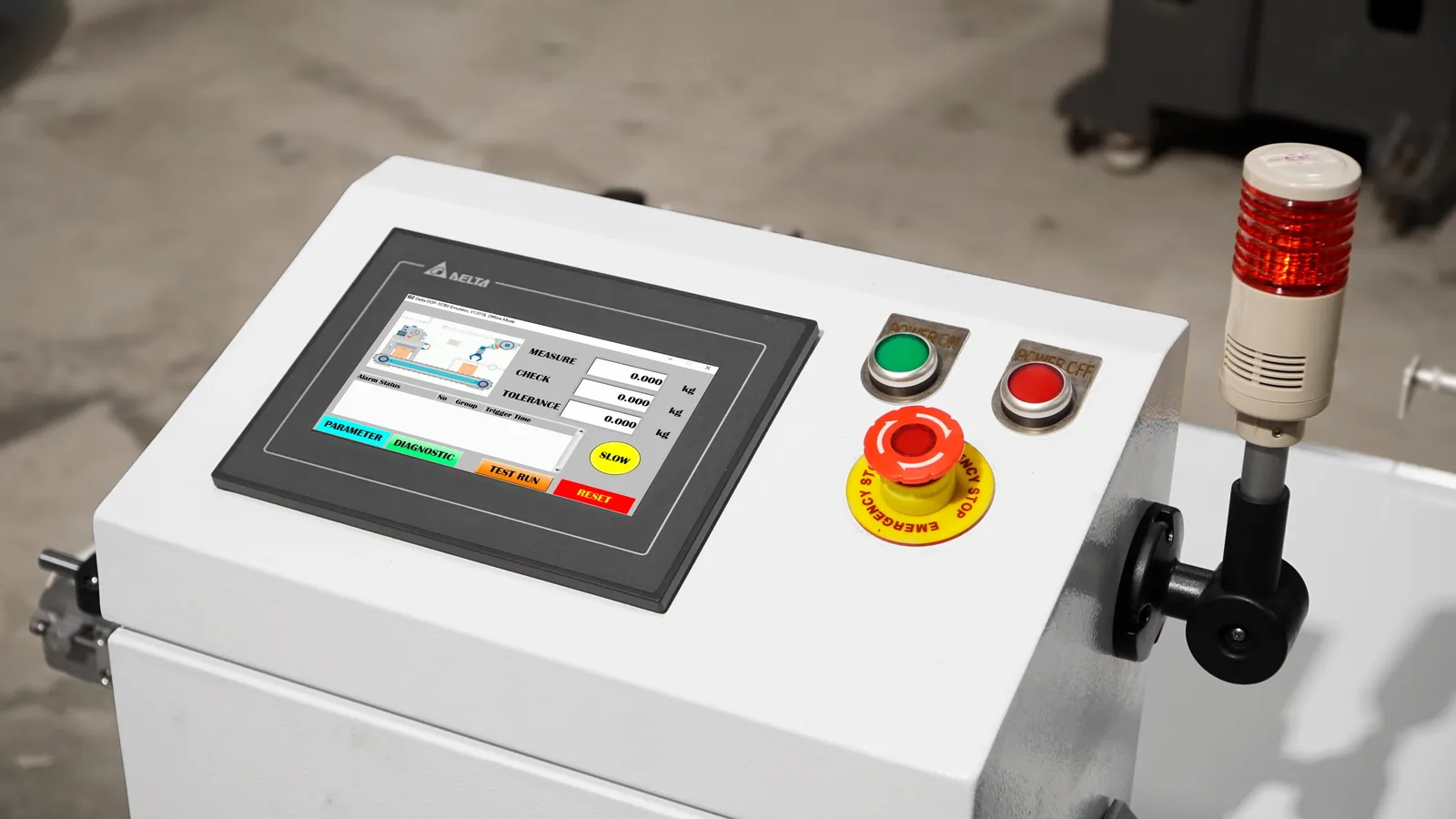

02Delta screen showing measure, check and tolerance

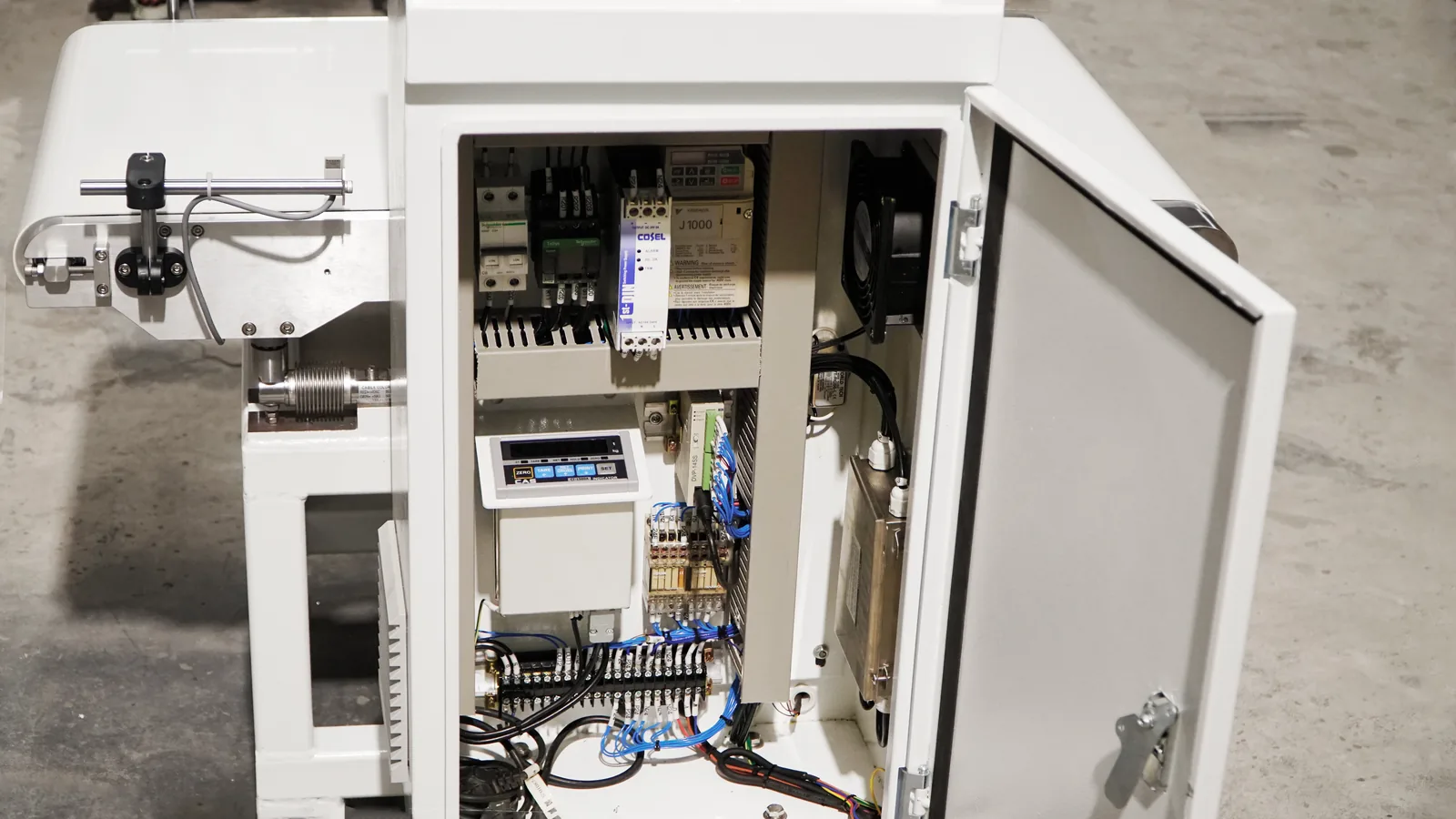

03Control cabinet: PLC, inverter and weight indicator

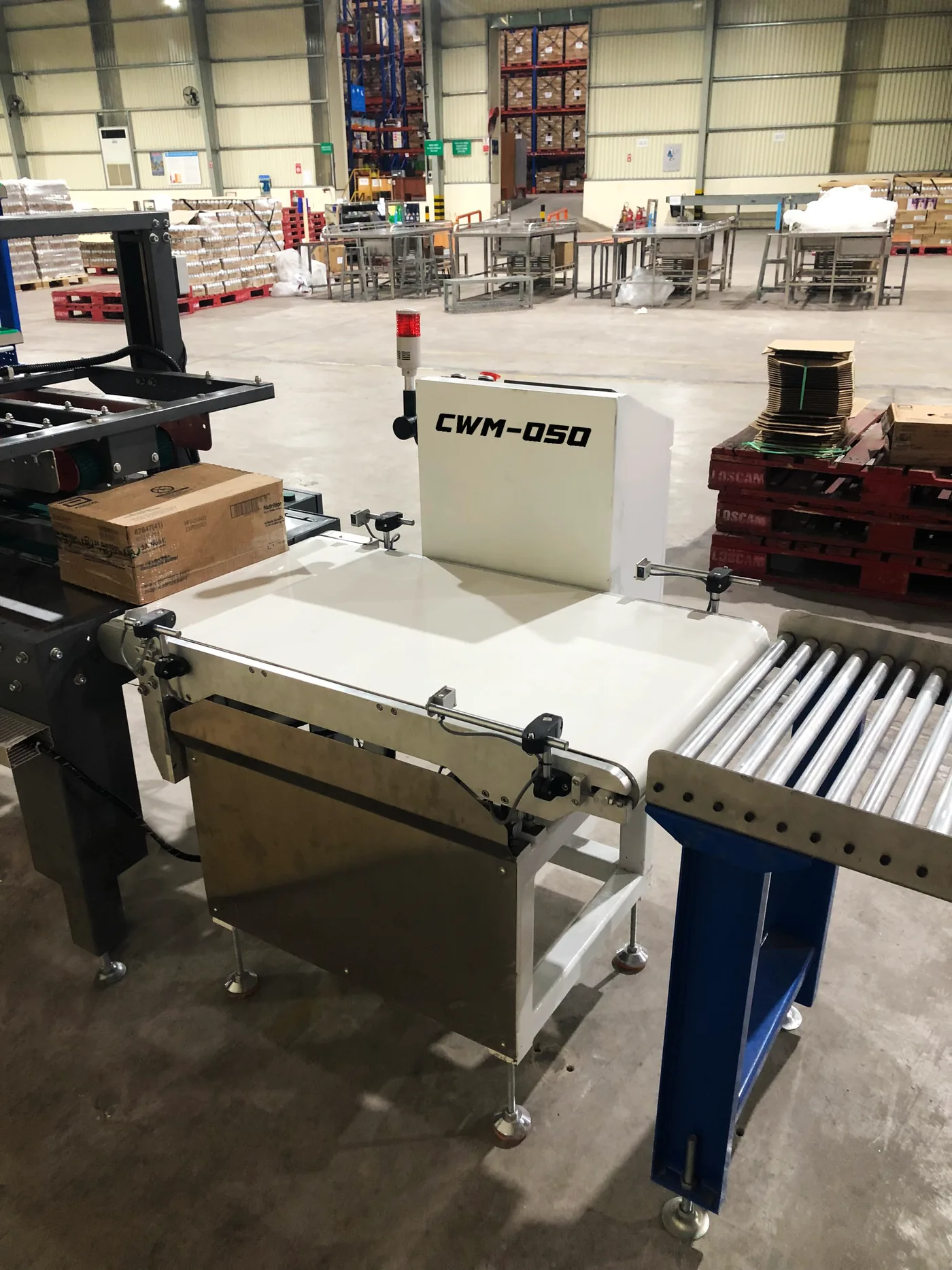

04Installed between conveyors on the warehouse line

Highlights

Automatic checkweighing

Weighs each product in motion and flags underweight or overweight items.

High accuracy

±25 g tolerance keeps weight consistent across the whole line.

High capacity

Checks products and cartons weighing up to 50 kg.

HMI interface

A touchscreen HMI for real-time weighing, alarms and statistics.

Technical specifications

CWM-050

Max. capacity: 50 kg
Conveyor speed: 40 m/min
Tolerance: ±25 g
Power: 500 W
Control system: Delta HMI + PLC DVP
Load cell: Load cell + CAS weighing indicator

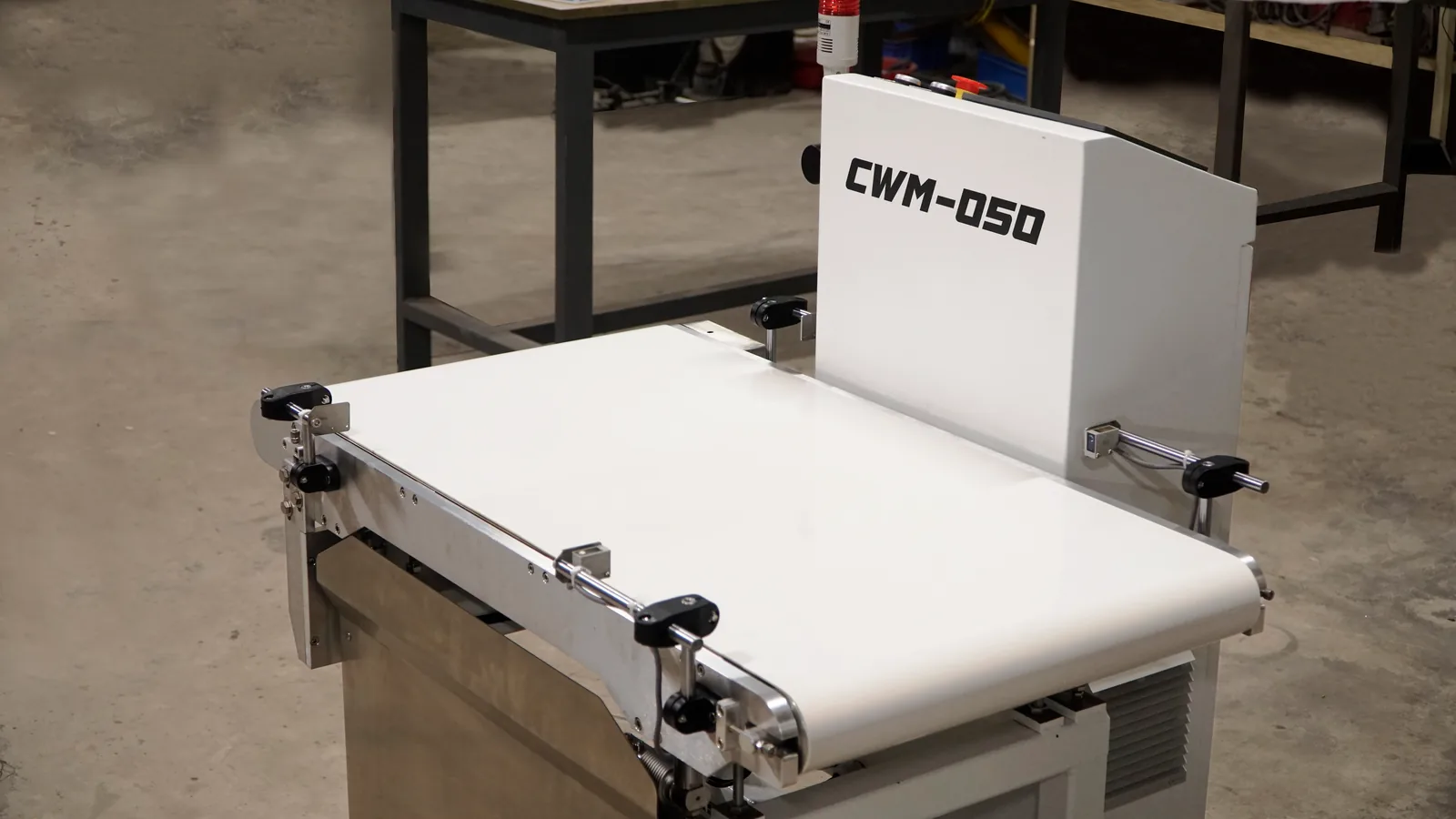

Conveyor belt: Food-grade PU conveyor belt

Standard configuration — throughput, conveyor and controls can be tailored to your line.

Control system

Delta DOP HMI

Operated from the Delta DOP HMI with an andon status tower and emergency stop — clear at a glance for line operators.

Delta touchscreen
Target weight & tolerance setup
Power & emergency stop
Andon alarm tower

Applications

Deployed across a range of production and packaging lines.

Food
Pharmaceutical
Chemical
Agriculture
Industrial
