QS servo drive

Compact series

Compact AC servo drive, 0.4 – 4 kW, for machine tools and automation equipment — position, speed and torque control over common industrial fieldbuses.

Request a quote

QS servo drive units across the power range

Power range: 0.4 – 4.0 kW
Supply voltage: 1-ph 220 V · 3-ph 220 V · 3-ph 440 V
Output frequency: 0 – 250 Hz
Fieldbus: EtherCAT · Modbus · CANopen · CANlink · PROFINET

[ Overview ]

Product introduction

The QS servo drive series is a cost-effective servo system (motor and drive) that suits a very wide range of industrial equipment.

Laser marking machines, joint robots, linear mechanical hands, wood machinery, glass machinery, injection moulding machinery, welding and cutting equipment, ceramic equipment, textile equipment, testing equipment, cable equipment, lithium battery equipment, electronic manufacturing equipment, milling machines, grinding machines, CNC lathes, food production lines, packaging production lines, engraving and milling machines, engraving machines, high-light machines, around-line machines, warp knitting machines, labelling machines, veneer machines and more.

High performance

Response frequency up to 1.2 kHz
Supports 17-bit / 20-bit encoders
Low cogging torque
3× overload ability

Intelligent

Load inertia identification
Real-time automatic gain adjustment
Automatic / manual notch filter
Automatic / manual vibration suppression control

Practical

Highly flexible script function
Freely assigned input/output signals
Internal position programming mode
Interrupt position control
Friction torque compensation
Gain switch
Torque limit change
Motor and drive miniaturization
Supports CANopen and EtherCAT for high-response multi-axis synchronization control

Notch filter (auto-notch filter)

When mechanical resonance is detected, the notch filter is set automatically.
With the automatic notch filter switched on the drive keeps detecting, so it also copes with a resonance frequency that varies over time.

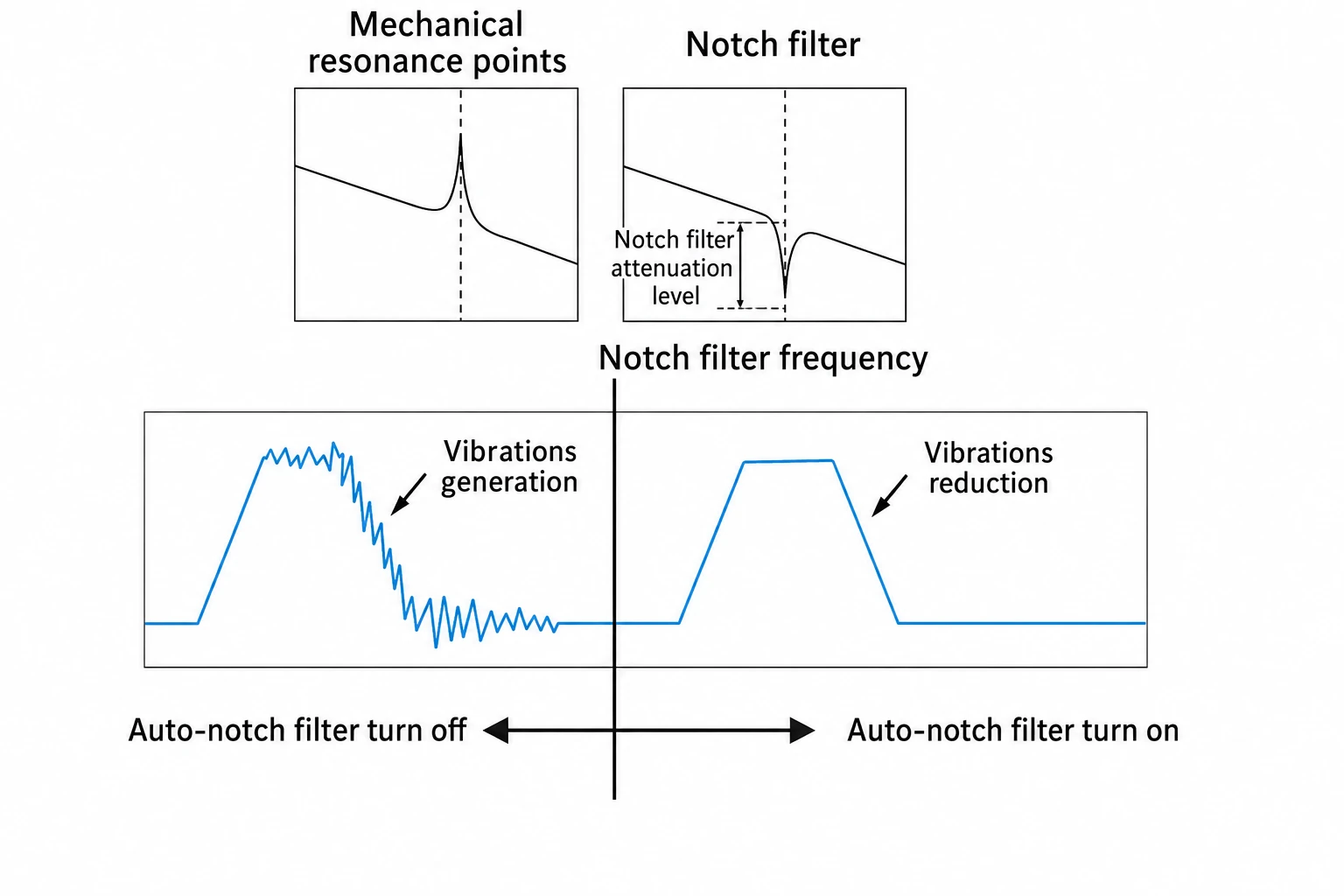

QS servo drive — mechanical resonance points, notch filter response and the vibration trace with the auto-notch filter off and on

Mechanical vibration suppression

The newly designed vibration suppression control function is standard and maximizes the suppression of machine vibration.
It solves the vibration of a low-rigidity machine at the front of a robot arm and keeps the machine running stably.

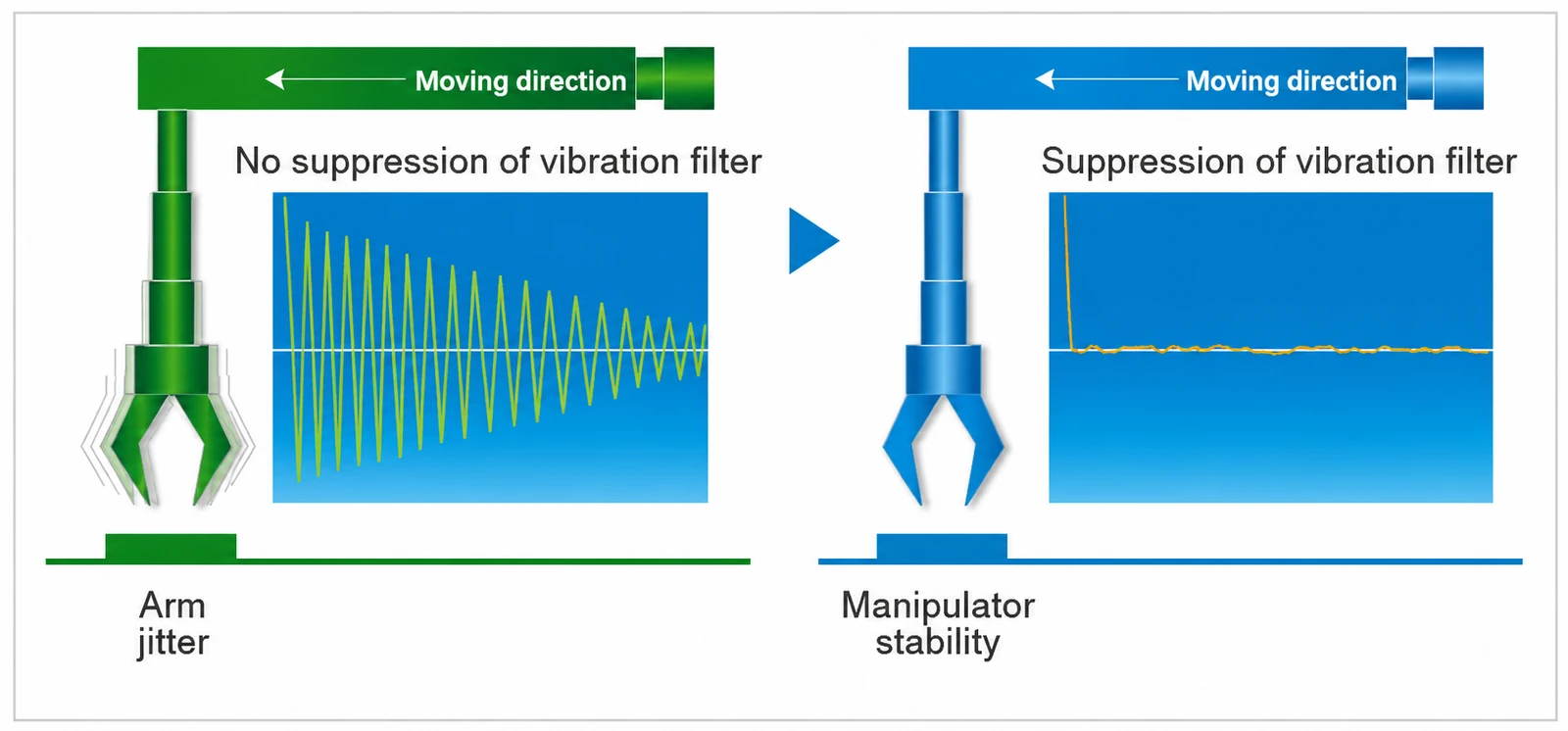

QS servo drive — arm jitter without the vibration filter compared with manipulator stability when the filter is on

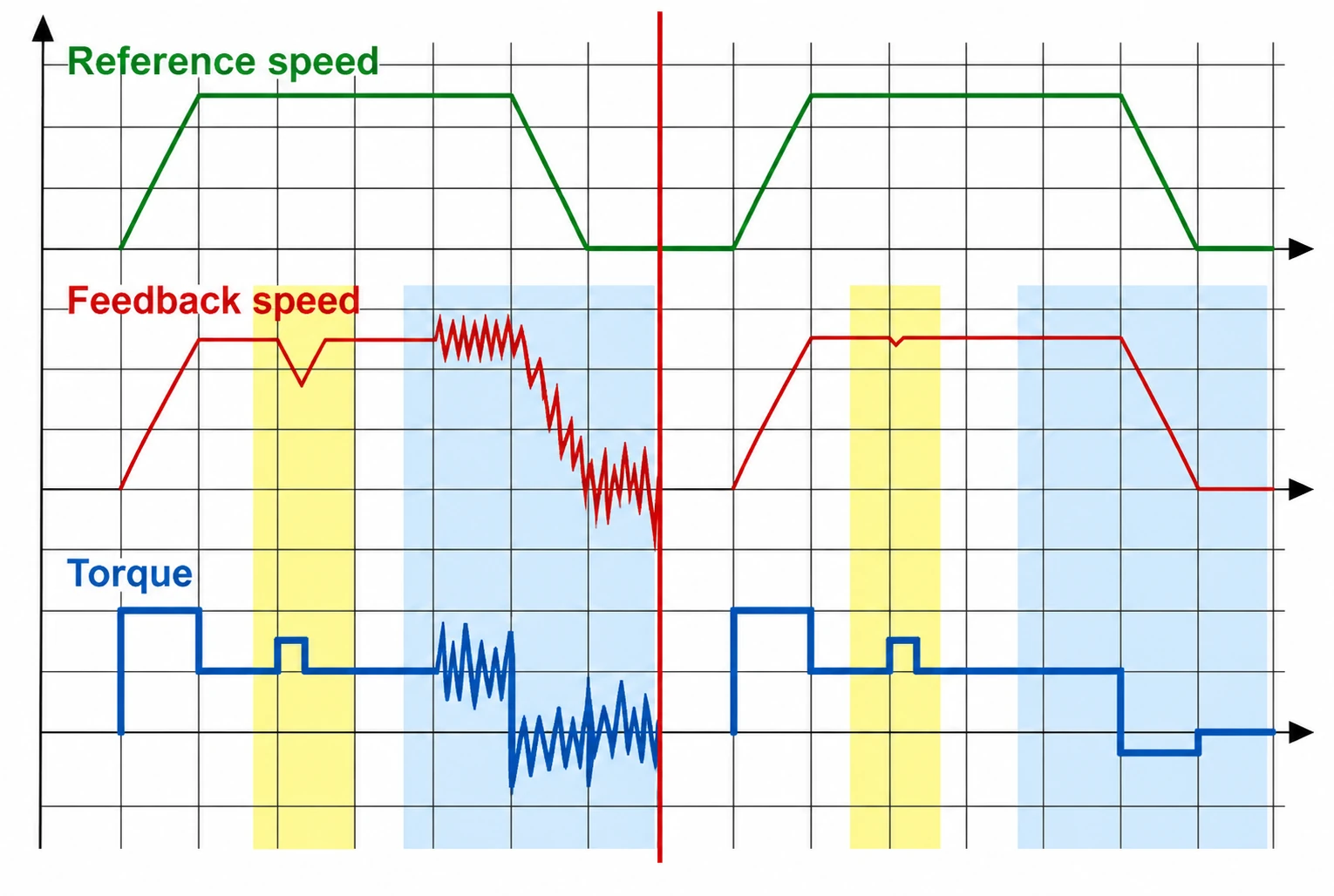

New auto-tuning function

The newly designed auto-tuning function greatly improves the QS servo drive's self-adaptive performance. Even a machine with low rigidity is tuned to the most appropriate setting.

Previously, when rigidity was low the machine tended to resonate, so responsiveness could not be improved. The QS servo drive's new auto-tuning function makes resonance far less likely even on a low-rigidity machine, which raises responsiveness and strengthens resistance to impact loads.

Script function

The built-in script function can replace the PLC and other upper computers to realize the logic programming function, which greatly improves the flexibility of the servo application.
The script is programmed with the supporting host computer software, and the instructions are simple and easy to use.

Model description

Servo drive

SDV3-2S0.4G
01SDV3	Product series
022S	Input voltage (V)2S: AC220V single phase2T: AC220V three phase4T: AC380V three phase
030.4	Power (kW)0.4 = 0.4 kW0.75 = 0.75 kW1.0 = 1.0 kW1.5 = 1.5 kW2.0 = 2.0 kW3.0 = 3.0 kW4.0 = 4.0 kW
04G	Bus optionG: generalE: with EtherCATC: with CANopen

Servo drive specification

Common specifications

Item		Specifications
Input power		Single / three phase 220 V · three phase 380 VVoltage variation range (−15 % ~ +10 %), 50/60 Hz
Cooling method		Fan cooling
Main circuit control mode		Sinusoidal PWM drive
Feedback		17-bit INC / 20-bit INC
Control mode		① Position control ② Speed control ③ Torque control④ Position/speed mode switch ⑤ Position/torque mode switch ⑥ Speed/torque mode switch⑦ Positioning operation mode
Position control	Max input pulse frequency	Line drive input: max 500 kHzOpen collector input: max 200 kHz
	Command pulse input mode	① Command pulse / command signal ② Forward rotating pulse and reverse rotating pulse ③ A/B phase orthogonal pulse
	Command control mode	① External command pulse input control ② Internal position data control
	Electronic gear	Electronic gear N/M times (N: 1~4194304 / M: 1~4194304)
	Torque limitation	Parameter control (forward and reverse rotating can be set respectively) / external analog torque control
Speed control	Analog command input	VCL DC 0 ~ ±10 V
	Speed variation rate	±1 r/min or below (load range 0 ~ 100 %)
	Speed range	1:5000
	Acceleration and deceleration time setting	Acceleration time and deceleration time can be set respectively, in two groups, and can accelerate and decelerate with an S curve
	Speed control method	External analog input, parameter setting, communication speed command, command pulse frequency
	Torque limitation	Parameter control (forward and reverse rotating can be set respectively) / external analog torque control
Torque control	Analog command input	VCL DC 0 ~ ±10 V
Torque control	Torque limitation	Parameter control / external analog speed limitation
Digital input / output	Input	EI1 ~ EI5, 5 lines input, the function can be set freely according to the parameter
Digital input / output	Output	Encoder pulse outputs by frequency division, A/B/Z phase output by line driveEOUT1 ~ EOUT3, 3 lines output, the function can be set freely according to the parameter
Monitor		Feedback speed, reference speed, reference torque, motor current, feedback of current location, location difference, reference pulse frequency, feedback pulse accumulation, reference pulse accumulation, VREF input voltage, TREF input voltage, input terminal signal, output terminal signal etc.
Protection (alarm display)		Overcurrent (oc1, oc2), over speeding (oS), overvoltage (Hv), memory error (dE), encoder error (Ec), overload (oL1, oL2), main circuit under voltage (Lu), EI repeat (ctE), deviation overflow (oF), servo motor over heat (AH) etc.
Application environment	Site location	Indoors (avoid direct sunlight), no corrosive gas (avoid smoke, methane)
	Ambient temperature	0 ~ 50 °C (when the ambient temperature is higher than the required one, please introduce air circulation)
	Storage temperature	−20 ~ 75 °C
	Relative humidity	RH 90 % lower (no condensation)
	Altitude	Lower than 1000 m
	Atmospheric pressure	86 ~ 106 kPa
	Vibration	≤ 0.5 G

Servo drive external description

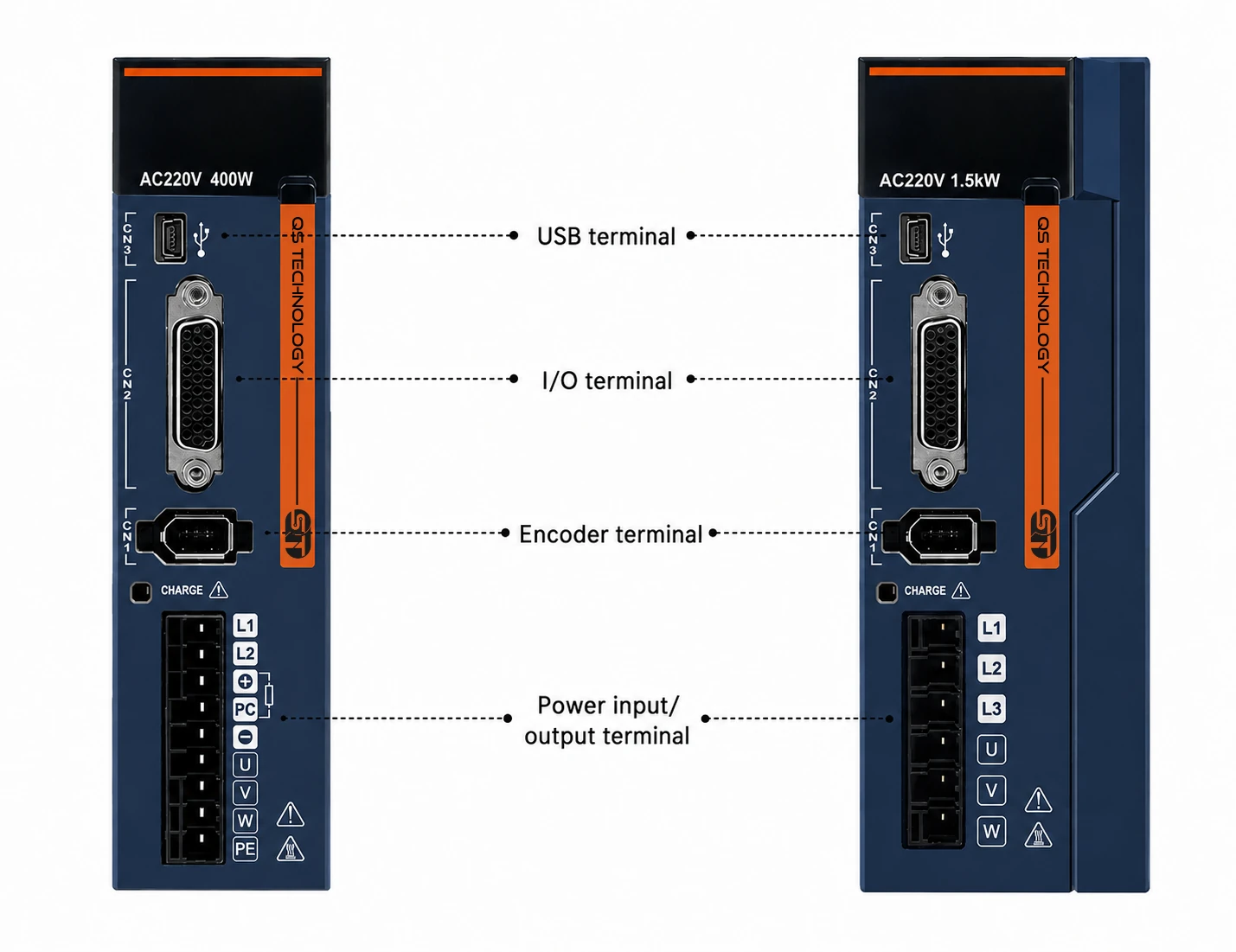

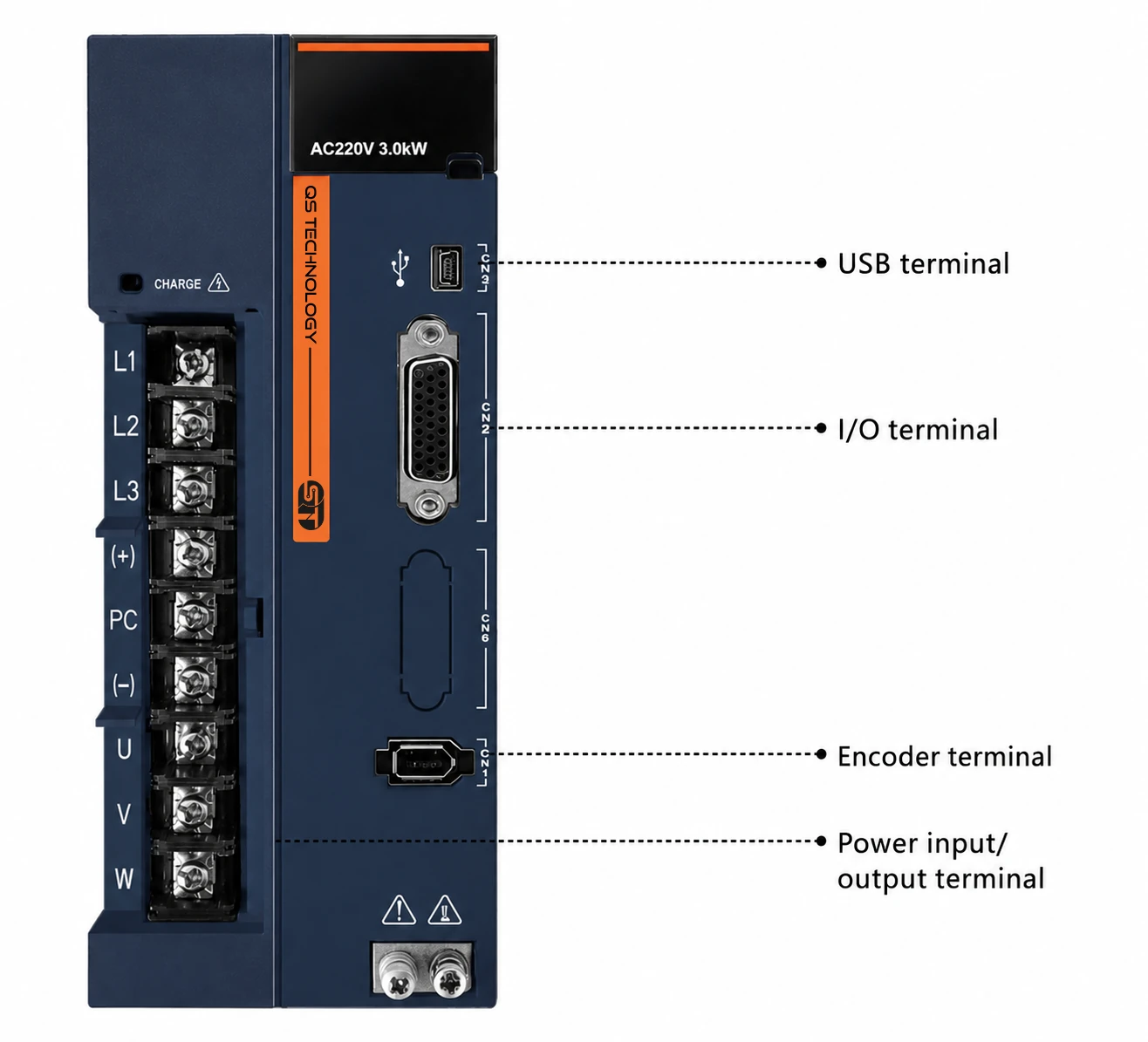

Front view

Servo drive external dimension

Unit: mm

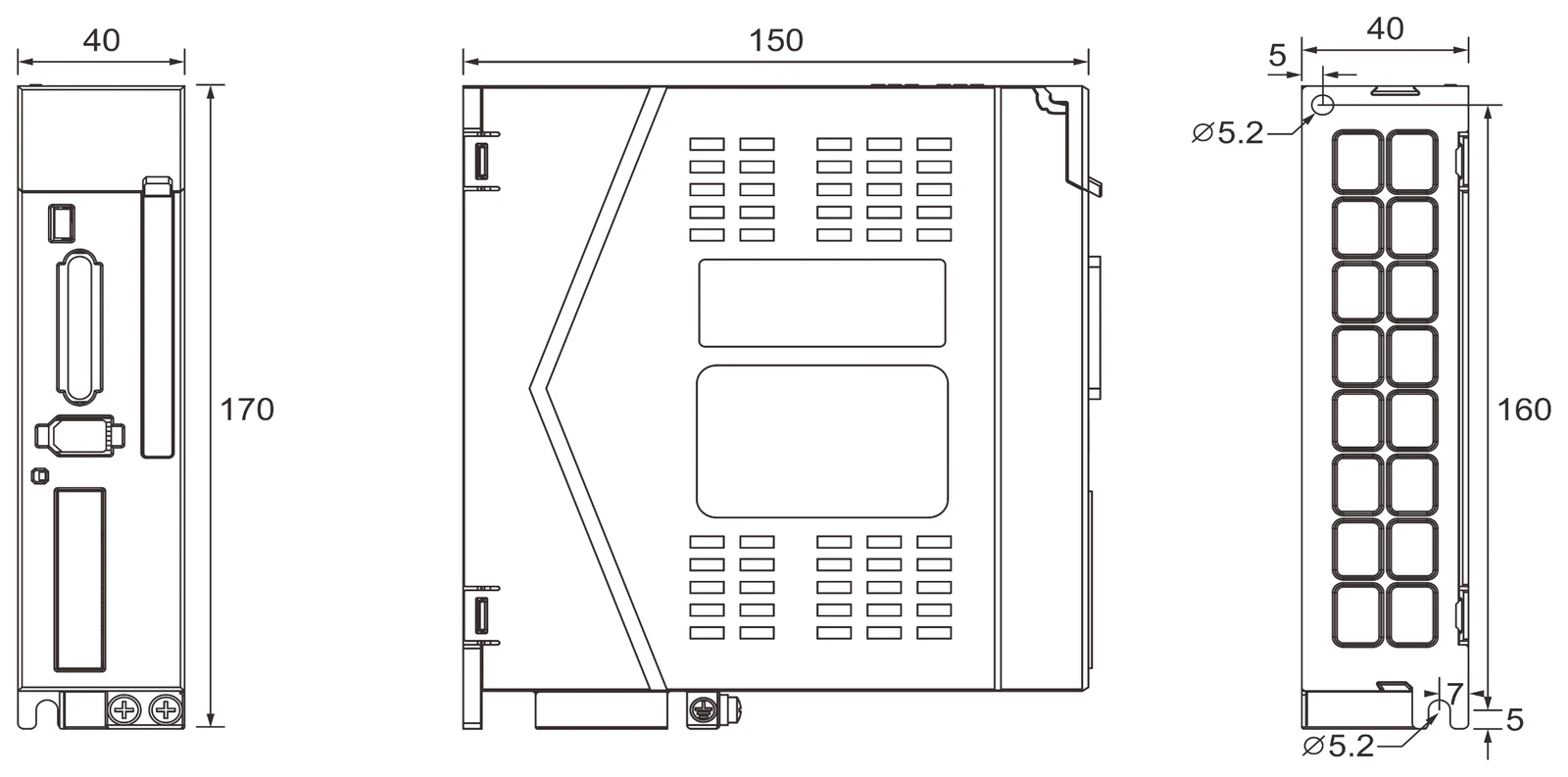

QS servo drive — Size 1 mounting dimensions: 40 wide, 170 high, 150 deep (mm) — Size 12S 0.4G ~ 0.75G

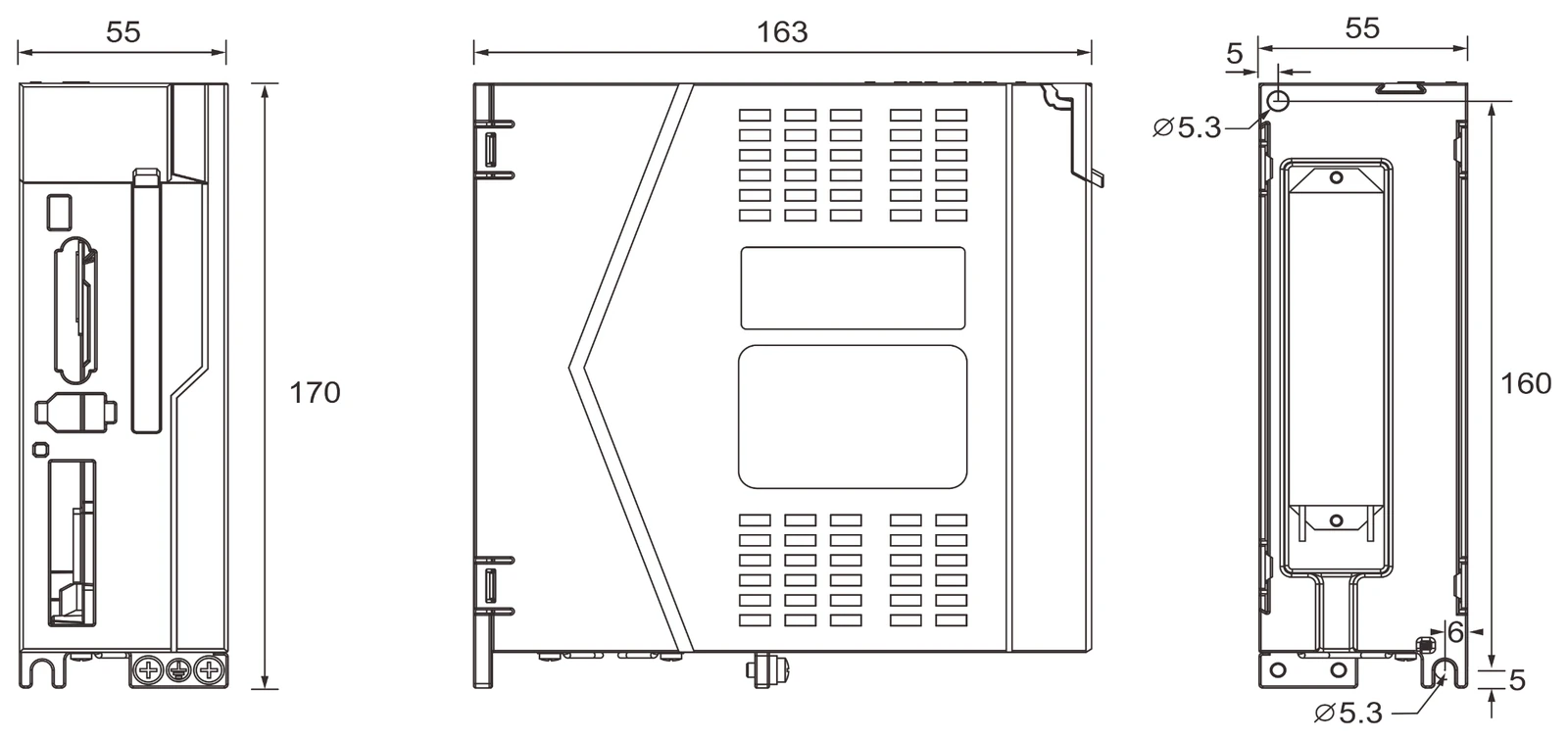

QS servo drive — Size 2 mounting dimensions: 55 wide, 170 high, 163 deep (mm) — Size 22S 1.0G ~ 1.5G4T 0.75G ~ 2.0G

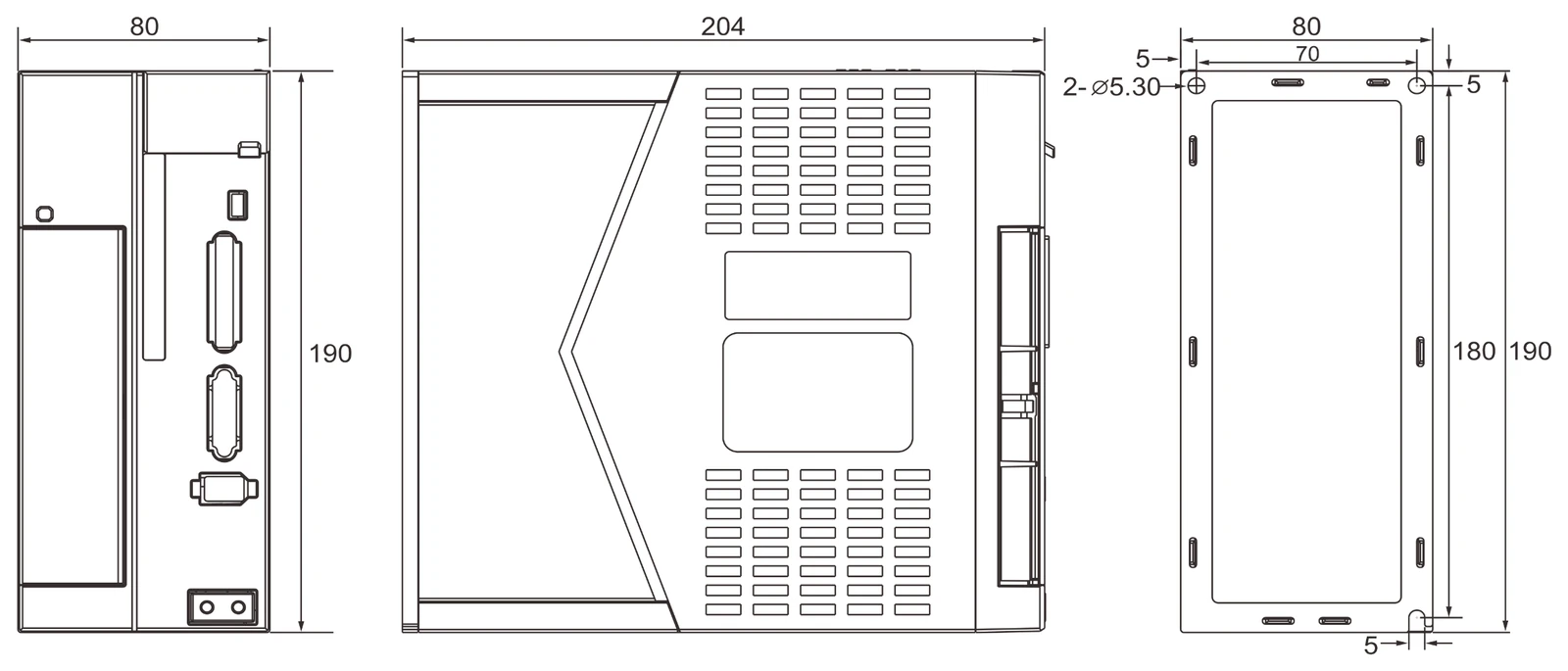

QS servo drive — Size 3 mounting dimensions: 80 wide, 190 high, 204 deep (mm) — Size 32T 2.0G ~ 3.0G4T 3.0G ~ 4.0G

[ Optional accessories ]

Optional accessories

Cable

L: cable length, unit: m

Cable model	Reference sample	Matched motor
DL-SCH086(ZD1V)-N-LWithout brake		SCH060 to SCH090

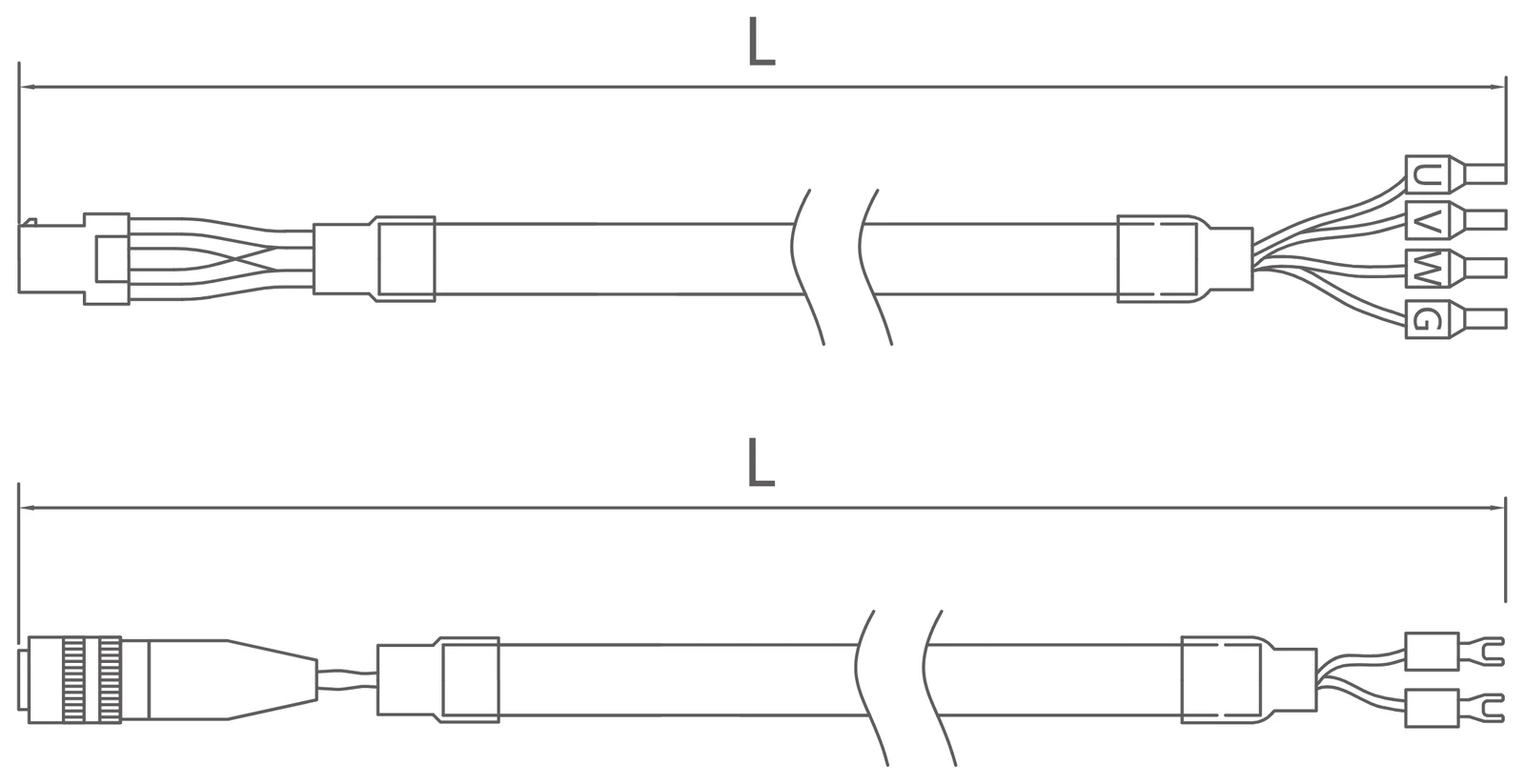

DL-SCH086(ZD1V)-B-LWith brake		SCH060 to SCH090

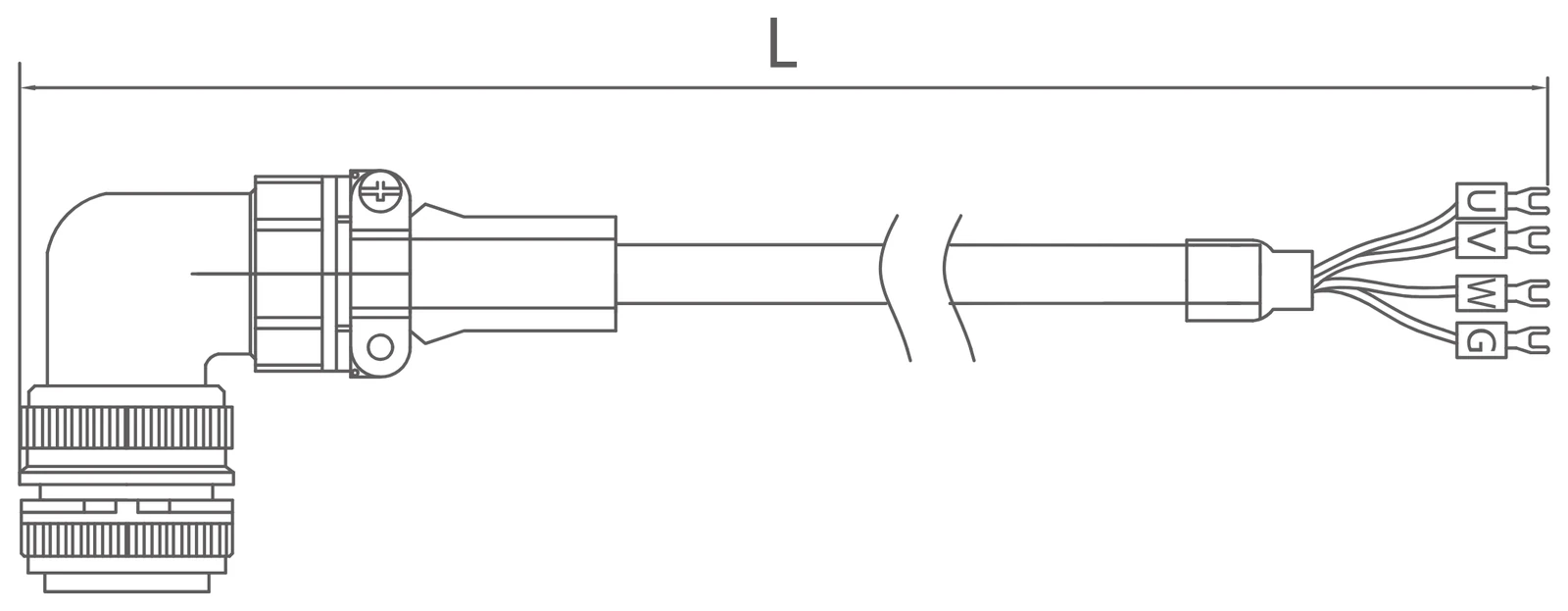

DL-SCH130(ZD1V)-N-L DL-SCH180(ZD1V)-N-LWithout brake		SCH110 to SCH180

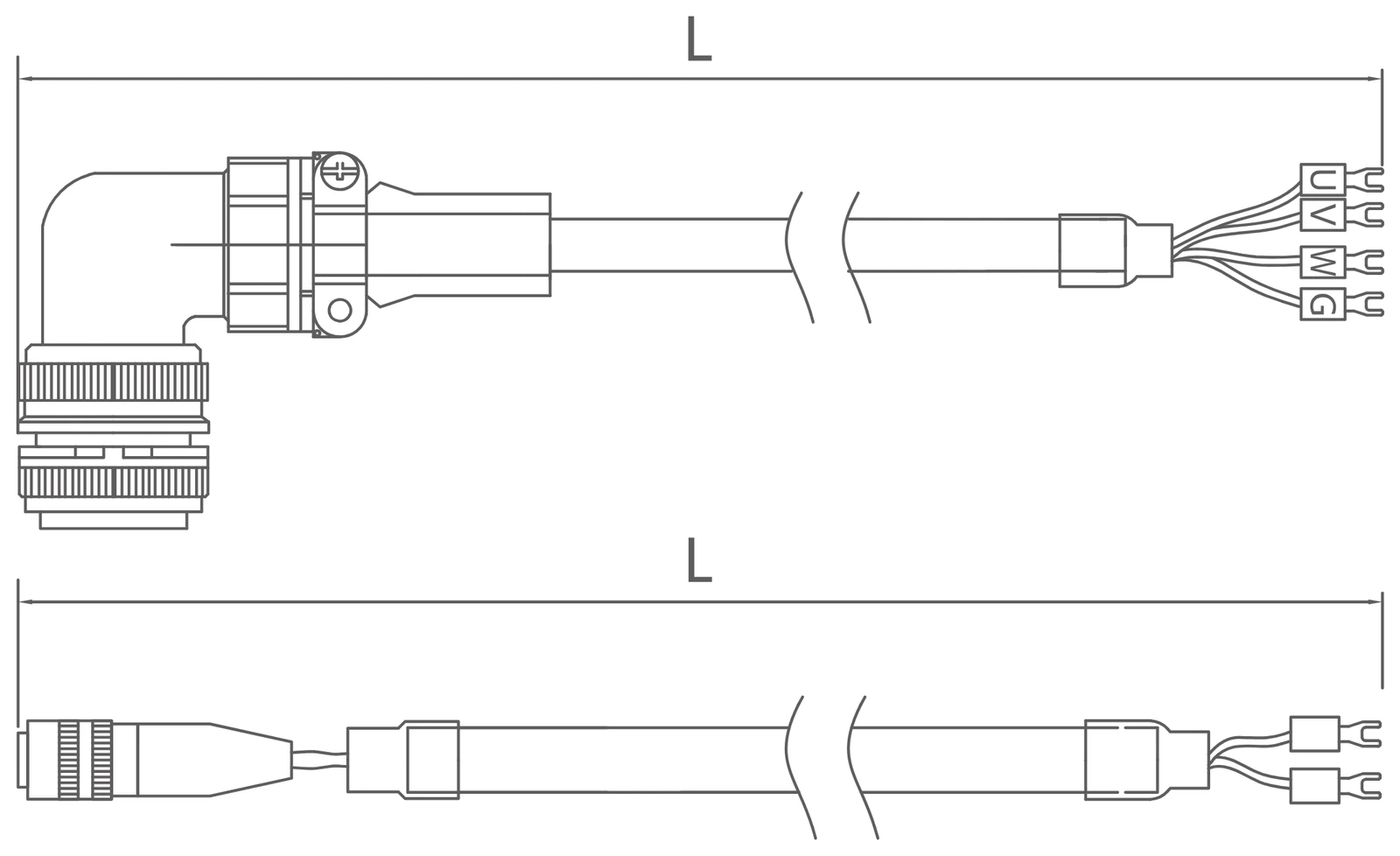

DL-SCH130(ZD1V)-B-L DL-SCH180(ZD1V)-B-LWith brake		SCH110 to SCH180

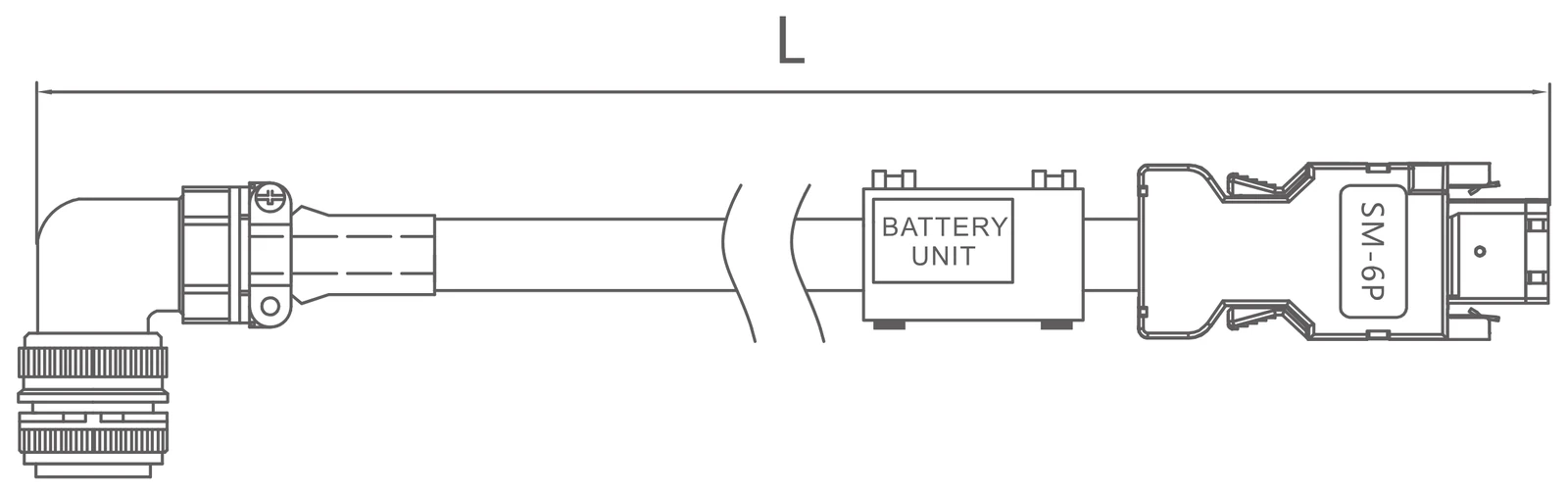

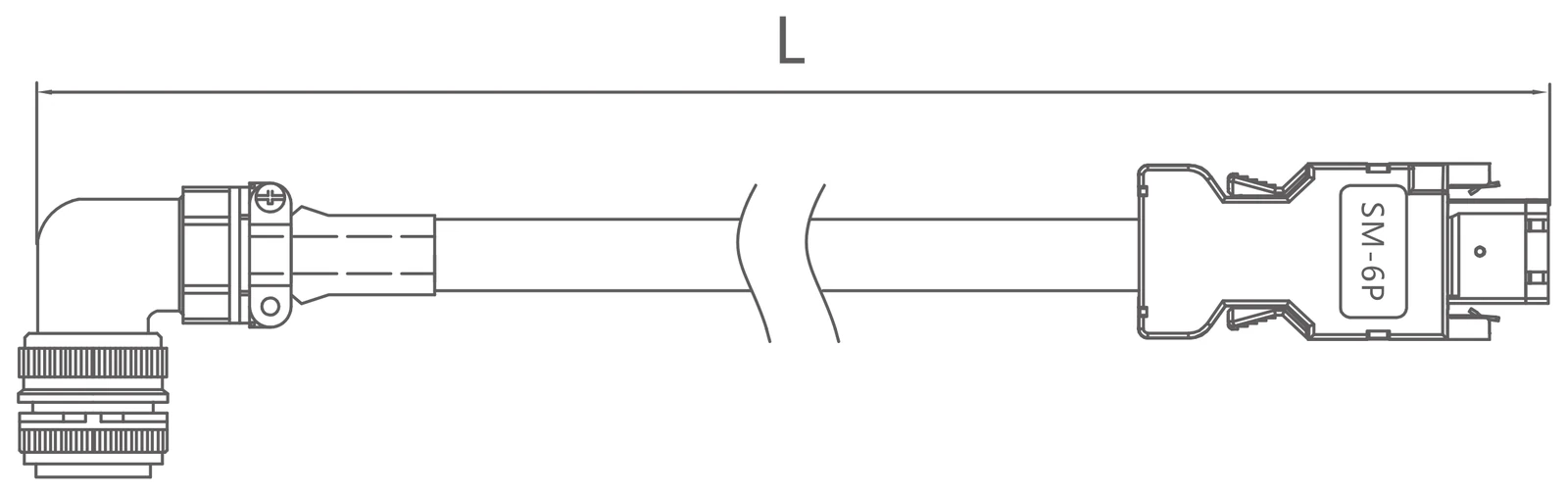

SA2FK-P1S(ZD1Y)-L		SCH060 to SCH090
SA2FK-P1D(ZD1Y)-L		SCH060 to SCH090
SA2FK-P2S(ZD1Y)-L		SCH110 to SCH180
SA2FK-P2D(ZD1Y)-L		SCH110 to SCH180

Power cable type description

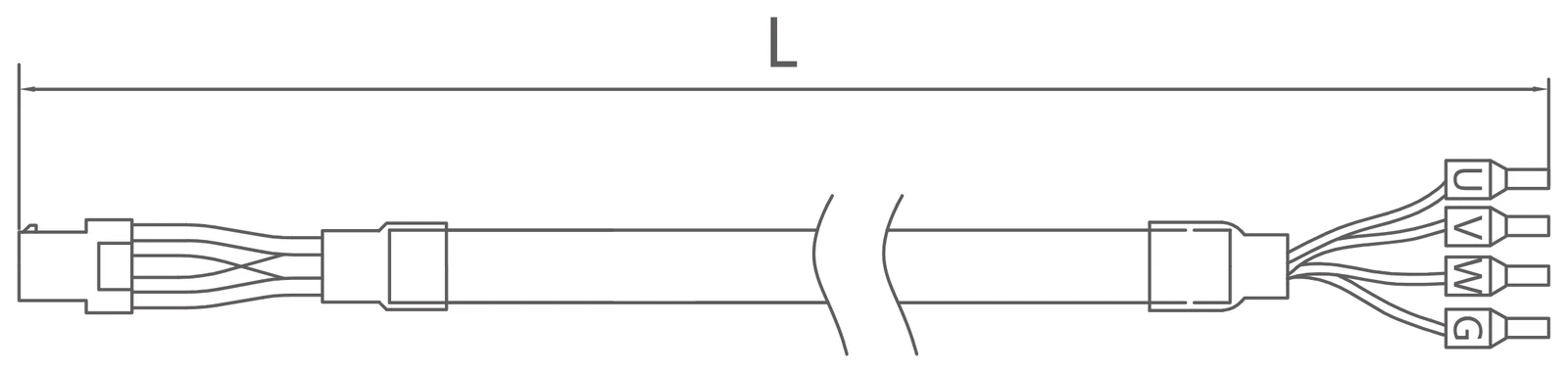

DL-SCH086(ZD1V)-N-L
01DL	Power cable type
02SCH086(ZD1V)	Motor typeSCH086: SCH060 ~ SCH090SCH130: SCH110 ~ SCH130SCH180: SCH180
03N	BrakeN: without brakeB: with brake
04L	Cable length (m)

Feedback cable type description

SA2FK-P1S(ZD1Y)-L
01SA2FK	Feedback cable
02P1	Motor typeP1: SCH060 ~ SCH090P2: SCH110 ~ SCH180
03S(ZD1Y)	Encoder modelS: INCD: ABS (with battery)
04L	Cable length (m)

Need the right QS servo drive model?

Send us the load, voltage and application — QS engineering helps pick the model code, cable and matching accessories.

Contact engineering
