I/O expansion board · Doubles as PLC

An input/output expansion board for CNC controllers that can also be switched over and used as a standalone PLC.

Get a quote →View specs →

Dimensions: 90 x 86 (mm)
Input voltage: 24 VDC
Input ports: 8
Output ports: 8

[ Technical specifications ]

Technical specifications

The RLTR_07_V10723 board combines I/O expansion and PLC control in a single device. In I/O Link mode it adds 8 inputs and 8 outputs to a CNC control system over RS485. Switched to PLC mode, the board handles the signals and control sequences suited to each machine application. Its compact design makes the product easy to place in a wide range of cabinet layouts.

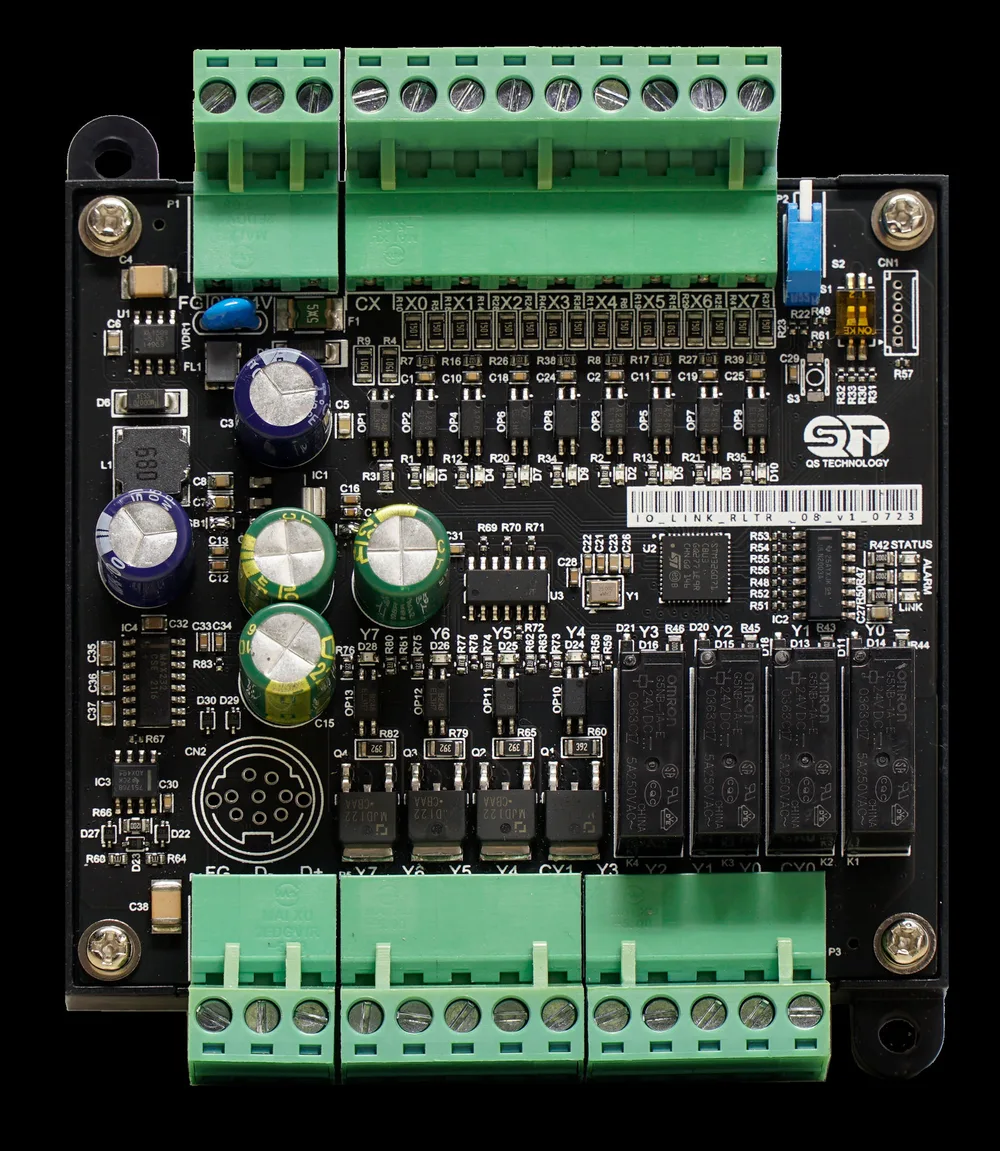

I/O Link RLTR_07_V10723

Dimensions90 x 86 (mm)

Input voltage24 VDC

Input ports8

Output ports8

Interface portRS485

I/O Link modeYes

PLC modeYes

Need help configuring the I/O Link RLTR_07_V10723?

QS engineers help you pick the right model, confirm compatibility with your existing CNC machine, and walk you through installation.
