Home/Applications/Jigsaw Machine
[ Application · 02 / 14 ]

Controller
for jigsaw machine

Precise cuts — Flexible profiles — Outstanding output

The QS Controller delivers optimal control for CNC jigsaw machines: the blade follows the program precisely, producing smooth cut lines and complex profiles across a wide range of materials.

Jigsaw Machine
+ DETAIL · 02
SCALE 1 : 4

High precision

Motion follows the program exactly, for smooth and crisp cut lines.

Stable operation

A robust, noise-immune control system that runs steadily over long shifts.

Flexible applications

Programs are easy to adjust for different materials and machining needs.

Higher productivity

Cutting is automated, cutting production time and running cost.

[ Control ]

Synchronised control — efficient machining

Table motion control

Coordinates the axes precisely so the table follows the profile being cut.

Blade orientation control

Works the rotary axis to steer the blade, producing smooth and accurate curves.

Cutting speed control

Tunes the feed to suit each material, thickness, and profile.

CNC program management

Store, edit, and run programs on the controller itself, with easy backup and reuse.

I/O signal management

Connects and drives peripherals: clamps, dust extraction, lubrication, sensors, switches.

A CNC jigsaw running the QS Controller

Moving table
The workpiece travels along X and Y (or X, Y, Z).
Fixed blade that only rotates
The blade turns to whatever heading the cut needs.
[ Capability ]

Versatile cutting capabilities

Straight cuts

Straight cuts

Curved cuts

Curved cuts

Circular arcs

Circular arcs

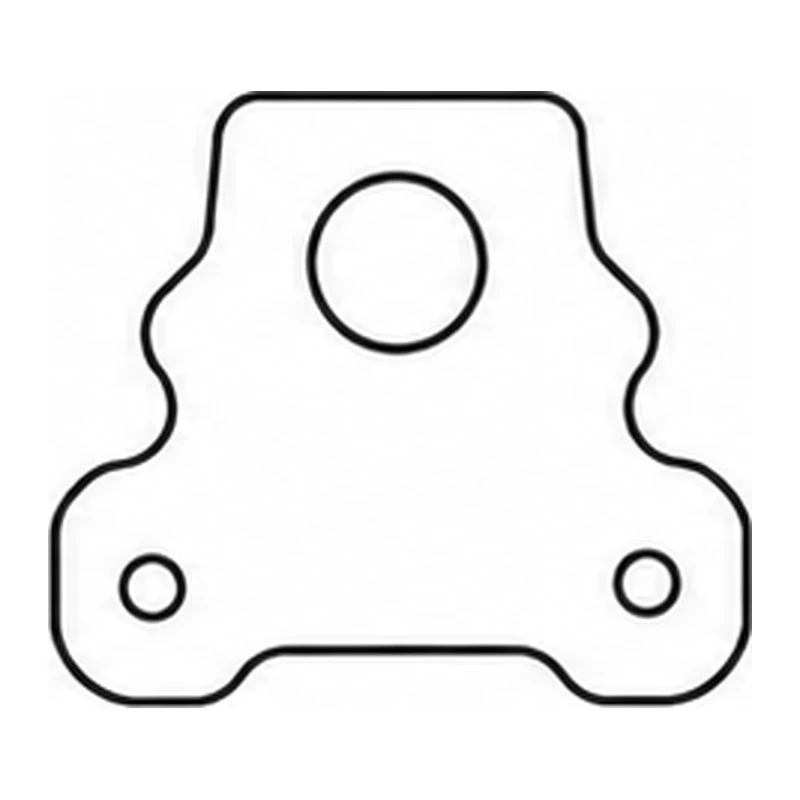

2D contours

2D contours

Logos and lettering

Logos and lettering

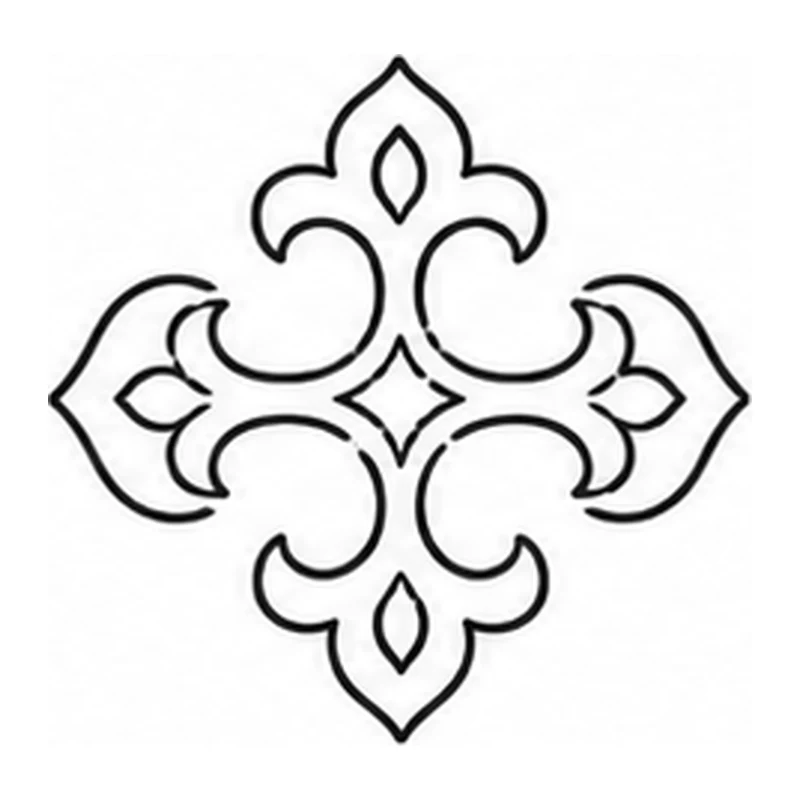

Decorative patterns

Decorative patterns

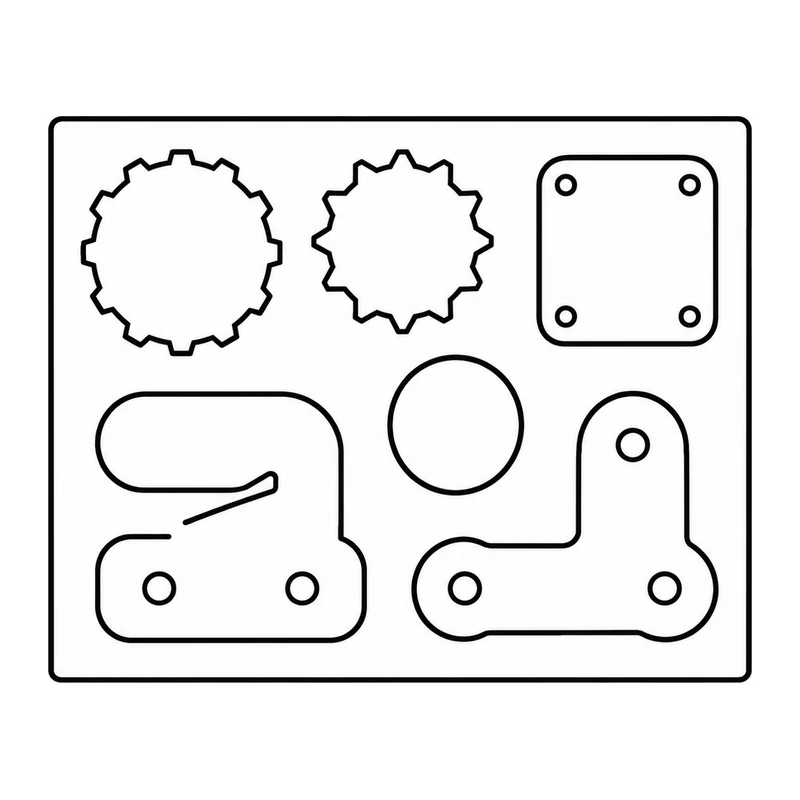

Multiple parts per sheet

Multiple parts per sheet

[ Compatibility ]

Cutting a wide range of materials

Used across many industries

  • Wood products and furniture
  • Signage and advertising lettering
  • Moulds, jigs, and fixtures
  • Decorative items and handicrafts
  • Composite and engineering-material parts
  • Technical parts cut from sheet stock
  • New builds and retrofits of CNC jigsaw machines
Natural wood

Natural wood

MDF

MDF

Plywood

Plywood

Engineering plastic

Engineering plastic

Mica

Mica

Composite

Composite

Insulation panel

Insulation panel

Non-metal sheet

Non-metal sheet

[ Benefit ]

What the QS Controller brings

Accurate machining

Cut lines hug the designed profile, evenly and to close tolerance.

Less manual handling

Automating the cut removes the errors that come with hand work.

Higher productivity

Continuous machining shortens production time.

Quick product changes

Change the program and parameters — no mechanical rework needed.

Flexible integration

Fits many machine configurations and a wide spread of requirements.

[ Gallery ]

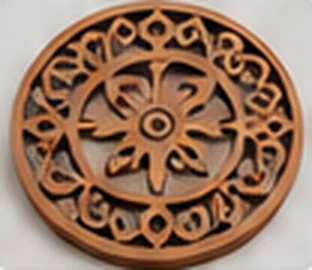

Parts made on these machines

[ Video ]

Jigsaw Machine in action

[ Matching products ]

Matching products

QS controller lines suited to automating this machine type. Pick a model by axis count, control mode, and the interfaces your machine needs.

A complete CNC control solution — raising performance across every machining application.

Automating Jigsaw Machine machines?

QS engineers help choose the I/O configuration, wiring diagram, and driver suited to this machine type.

Contact engineering →
